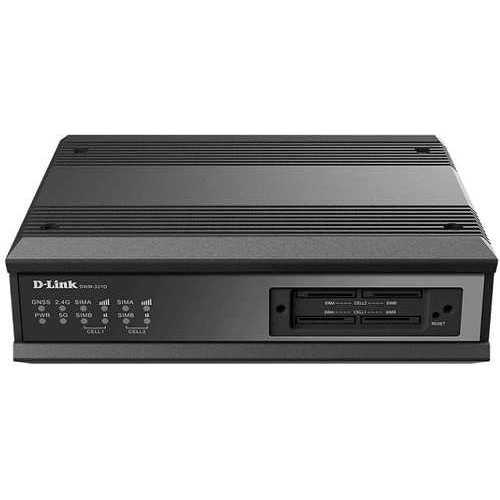

4G LTE In-Vehicle Hotspot D-Link DWM-321

- Suitable for delivering in-Vehicle 4G/LTE mobile broadband with downlink speeds up to 150 Mbps

- Dual-band 802.11ac Wi-Fi for combined speeds up to AC1200 speeds (300 + 866 Mbps)

- 3 x 10/100/1000 Ethernet LAN ports

- 2 x LTE modems and 4 x SIM card slots for multi-network capacity and failover

- Supports WPA/WPA2, WPA-PSK, WPA2-PSK, and 802.1x encryption

- Advanced VPN Features including VPN tunnels for IPSec, OpenVPN, L2TP (over IPSec), PPTP, and GRE

- Rugged, robust zinc-plated steel casing protects internal components against physical damage

- Captive portal allows for individual user access control and authentication

- Includes support for GPS/GLONASS/Galileo/BeiDou GPS

- IGN (Ignition Sense) power control ideal for in-vehicle use

- Supports D-Link ECS (DECS) for remote management via web browser

Specifications

Model DWM-321

Device Interfaces One 10/100/1000 Ethernet WAN/LAN port

Two 10/100/1000 Ethernet LAN ports

DI/DO/TX/RX/Grounding ports

One DC power input

D1: Four SIM slots (Two LTE Modem)

A1: Two SIM slots (One LTE Modem)

IGN (Ignition Sense) Power Control function

Antennas D1: Four LTE external antennas (Two LTE Modem)

A1: Two LTE external antennas (One LTE Modem)

Two Wi-Fi antennas

Standards IEEE 802.11ac/n/g/b/a

Wi-Fi Data Rates Up to 866 Mbps with 802.11ac clients

Up to 300 Mbps with 802.11n clients

6/9/11/12/18/24/36/48/54 Mbps in 802.11g mode

1/2/5.5/11 Mbps in 802.11b mode

Functionality

Wireless Security Features WPA/WPA2/WPA-PSK/WPA2-PSK/802.1x encryption

Firewall Network Address Translation (NAT)

Stateful Packet Inspection Firewall with Stealth Mode

IPS Access Control: Packet Filters

Application Filter

URL Blocking

MAC Address Control

Content Filter

Advanced Features QoS engine (Quality of Service)

SNMP Support

Port Forwarding

Virtual Server

GNSS

Web-based UI

TR-069 CPE WAN Management Protocol

DMZ & Pass Through

Captive Portal

Load Balance

DECS
