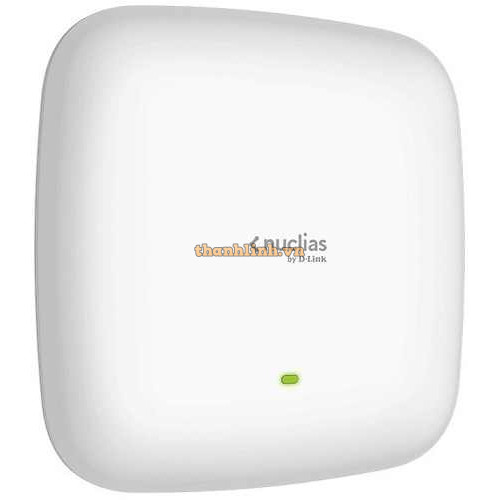

Nuclias Cloud-Managed AC1750 Wave 2 Access Point D-Link DBA-1520P

- Centralized cloud-based management, with intuitive web and app-based interface

- Superior throughput with dual-band transfer speeds up to 450Mbps in the 2.4 GHz band and 1299Mbps in the 5 GHz band

- Slice through congestion with better handling of multiple connections thanks to IEEE 802.11ac Wave 2 wireless

- 3 x 3 MU-MIMO Antenna with three spatial streams handles simultaneous connections more efficiently

- Supports WPA3™ - the latest WiFi security for more protection

- Band Steering pushes 5 GHz capable devices onto the faster band

- Beamforming tracks devices, giving better connectivity while on the move

- Create a secure guest network with social login amongst other authentication options

- Supports Power over Ethernet for simpler installation with less cable clutter

- With Zero Touch Deployment, deployment is flexible and fast: get online in no time

- Equipped with an integrated DHCP Server to provide stand-alone capabilities

- PoE Injector and Power Adapter are not included.

Specifications

Model DBA-1520P

General

Interface IEEE 802.11a/b/g/n/ac Wave 2 wireless

1 x RJ45 Console Port

1 x 10/100/1000 Mbps Gigabit Ethernet Port

Standards IEEE 802.11a/b/n/g/ac Wave 2

IEEE 802.3az Energy-Efficient Ethernet (EEE)

IEEE 802.3at Power over Ethernet (PoE)

IEEE 802.3i/u/ab

IEEE 802.3x Flow Control

LEDs Power/Cloud

Data Rate 2.4 GHz: Up to 450 Mbps

5 GHz: Up to 1299 Mbps

Antenna Internal omnidirectional antennas

• 2.4 GHz: 4 dBi

• 5 GHz: 5 dBi

Functionality

Security WPA3-Personal

WPA2-Personal/Enterprise

WPA-Personal/Enterprise

MAC address filtering

SSID isolation

Guest isolation

Captive portal

Station isolation

Maximum SSIDs Supports up to 16 SSIDs per device: Up to 8 SSIDs per wireless band

Physical

Power Input IEEE 802.3at Power over Ethernet (PoE)

Power adapter: 12 VDC, 2.5 A

Power Consumption PoE: 12.5W

Power adapter: 12.5W

Dimensions 190 x 190 x 44.8 mm
