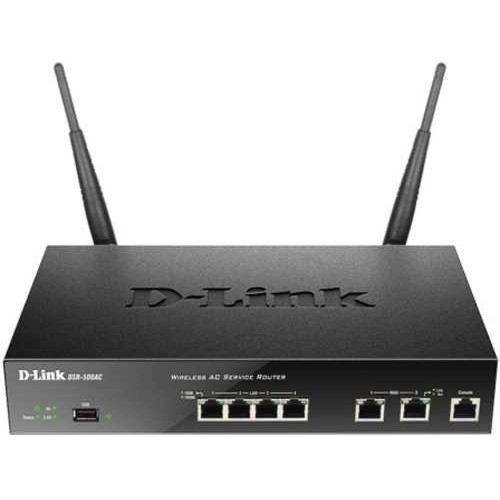

Wireless AC Dual-band Service Router D-Link DSR-500AC

- The D-Link DSR Series Unified Services Routers provide secure, high-performance networking solutions to address the growing needs of small and medium businesses. The DSR-500AC has two Gigabit WAN ports offering load balancing and fault tolerance for the Internet connection. The integrated high speed 802.11ac wireless technology offers comparable performance to traditional wired networks, but with fewer limitations. The DSR-500AC router provides optimal network security via features such as Virtual Private Network (VPN) tunnels: PPTP, IPSec, L2TP, SSL, GRE, OpenVPN; supporting up to 95 tunnels.

Specifications

Model DSR-500AC

Interfaces

Ethernet 2 x 10/100/1000 Mbps WAN Ports

4 x 10/100/1000 Mbps LAN Ports

Wireless Selectable 802.11b/g/n or 802.11a/ac

2 Detachable Omni-Directional Antennas

USB 2.0 1

Console 1 RJ-45

System performance

Firewall Throughput 950 Mbps

VPN Throughput 200 Mbps

Concurrent Sessions 50

New Sessions (per second) 500

Firewall Policies 600

Internet

Internet Connection Type Static/ Dynamic IP

PPPoE/ L2TP/ PPTP

Multiple PPPoE

Firewall System

Support Static Route, Dynamic DNS, Inter-VLAN Route, NAT, PAT, Web Content Filtering, Intrusion Prevention systems (IPS)

Networking

Support DHCP Server/Client, DHCP Relay, IEEE 802.1q VLAN, VLAN (Port-Based), IP Multicast, IPv6, Route Failover

Wireless

Standard B/G/N/AC

Support Multi SSID, SSID to VLAN Mapping

VPN

Support VPN, IPSec, SSL, PPTP/L2TP Clients, GRE

Encryption Methods DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL

Bandwidth management

Management Max. Bandwidth Control

Priority Bandwidth Control (Port-Based QoS, 3 Classes)

General

Power Supply 12VDC, 1.5A

Max. Power Consumption 13.1W

Dimension 180 x 280 x 44 mm

- Bảo hành 36 tháng.
