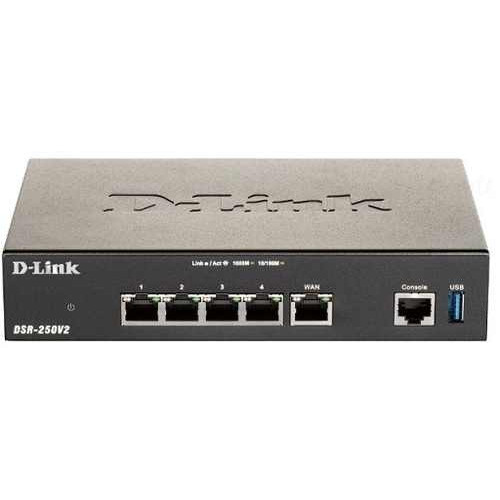

5-Gigabit Port VPN Router D-Link DSR-250V2

- The D-Link DSR-250v2 Series Unified Services Routers provide highly secure, multifunctional networking solutions to small and medium businesses users.

- Automatic failover to another link from available ISP when primary line is lost.

- Support 1 x GE WAN, 3 x GE LAN, 1 GE Configurable LAN/WAN and 1 x USB 3.0 port.

- 900/200Mbps firewall/VPN throughput, 50.000 Concurrent Sessions, and 50/20 IPsec/SSL VPN Tunnels.

- Advanced routing, VLAN and IPsec/PPTP/L2TP/OpenVPN VPN Server/Client.

- Value-added office utilities to reduce OpEx/CAPEX.

- Traffic load balancing and Avoid complicated maintenance issues.

Thông số kỹ thuật

Ethernet Interface 1 x 10/100/1000 Mbps WAN port; 3 x 10/100/1000 Mbps LAN ports; 1 x 10/100/1000 Mbps configurable port

USB Port 1 x USB 3.0

Console Port RJ-45

Firewall Throughput 950 Mbps

VPN Throughput (3DES) 200 Mbps

Concurrent Sessions 50,000

New Sessions (per second) 2000

Firewall Policies 300

Static/Dynamic IP Yes

Static Route Yes

Dynamic Route RIP v1/v2, OSPF, OSPFv3

Authentication Internal User Database, Radius, POP3, LDAP, AD, NT Domain

Application Control Well-known Application Control (license required)

DHCP Server/Client 1024 clients

DHCP Relay Yes

IEEE 802.11q VLAN Yes

Number of VLANs 16

IP Multicast IGMP Proxy, IGMP Snooping

IPv6 Yes

Route Failover Yes

VPN Tunnels 75

IPsec Tunnel 50

PPTP/L2TP Tunnels 30

GRE 20

OpenVPN Tunnels 20

SSL Encryption Methods RC4-128, 3DES, AES

Encryption Methods DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL

Priority Bandwidth Control Low/Medium/High

Web-based User Interface Yes

Command Line Yes

SNMP v1, v2c, v3

Power Supply External Power Supply Unit DC 12 V/1.5 A

Max Power Consumption 8.603 W/ 14.4 W

Dimensions (L x W x H) 190 x 120 x 38 mm
