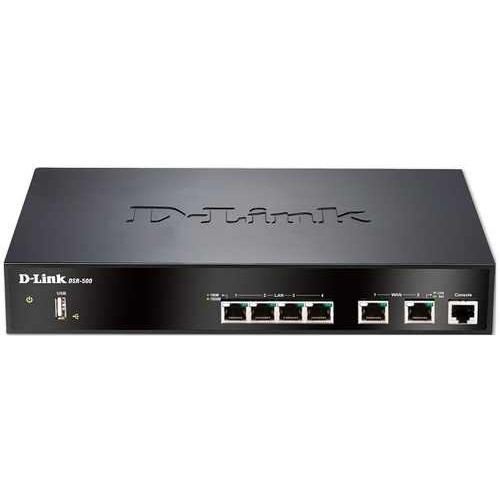

Dual WAN 4-Port Gigabit VPN Router D-Link DSR-500

- 2 cổng 10/100/1000 Mbps WAN + 4 cổng 10/100/1000 Mbps LAN.

- Hỗ trợ cổng kết nối: USB 2.0, RJ45.

- Nguồn điện: 100-240 VAC, 50/60Hz.

- Công suất tiêu thụ: 15.6W.

- Kích thước: 180 x 280 x 44 mm.

Đặc tính kỹ thuật

General

Ethernet Interface

2 x 10/100/1000 Mbps WAN Ports

4 x 10/100/1000 Mbps LAN Ports

USB 2.0 Ports

1

Console Port

RJ45

Performance

Firewall Throughput

950 Mbps

VPN Throughput

70 Mpps

Concurrent Sessions

30000

New Sessions (per second)

300

Firewall Policies

300

Internet Connection Type

Static/ Dynamic IP

PPPoE/ L2TP/ PPTP

Multiple PPPoE

Firewall System

Static Route

Dynamic DNS

Inter-VLAN Route

NAT, PAT

Web Content Filtering: Static URL, Keywords

Intrusion Prevention System (IPS): Signature Package Included in Firmware

Networking

DHCP Server/ Client

DHCP Relay

IEEE802.1q VLAN

VLAN (Port-Based)

IP Multicast: IGMP Proxy

IPv6
