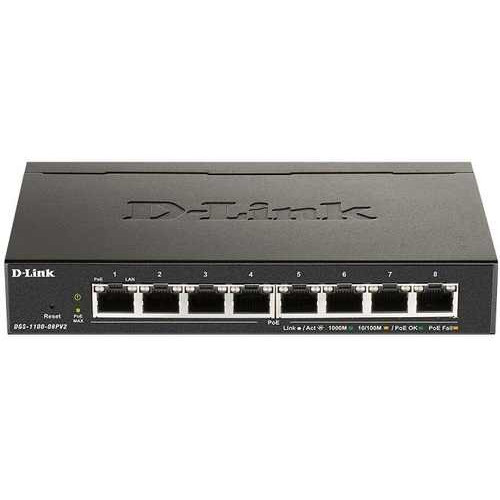

8-Port Gigabit PoE Smart Managed Switch D-Link DGS-1100-08PV2

- 8 x 10/100/1000BASE-T PoE ports

- Supports IEEE 802.3at PoE

- 64W PoE power budget

- Compact design for convenient placement

- Fanless design for silent operation

- Innovative D-Link Green energy saving features

- Complete web interface for comprehensive switch management

Đặc tính kỹ thuật

Model DGS-1100-08PV2

General

Hardware Version A1

Size Desktop

Number of Ports 8 x 10/100/1000 Mbps (PoE)

Port Functions IEEE 802.3 for Ethernet

IEEE 802.3u for Fast Ethernet

IEEE 802.3ab for Gigabit Ethernet

IEEE 802.3at

Auto-negotiation

Supports half/full-duplex operation (half at 10/100 Mbps, full at 1000 Mbps)

Auto MDI/MDIX

IEEE 802.3x Flow Control supports full-duplex mode

IEEE 802.3az compliant

Performance

Switching Capacity 16 Gbps

Maximum Forwarding Rate 11.9 Mpps

MAC Address Table Size 4K entries

Packet Buffer 1.5 Mbits

Flash Memory 2 Mbytes

PoE

PoE Standard IEEE 802.3af/802.3at

PoE Capable Ports Ports 1 to 8

PoE Power Budget 64 W

30W per PoE port max

Power Consumption

Standby Mode 2.0 W

Maximum Power Consumption 77.9 W (PoE on)

4.6 W (PoE off)

Physical

Power Input 100 to 240 V AC, 50 to 60 Hz

external power adapter

MTBF 786,841 hours

Acoustics 0 dB(A)

Weight 0.43 kg

Dimensions 171 x 97.8 x 28.6 mm

- Bảo hành: 3 năm.
