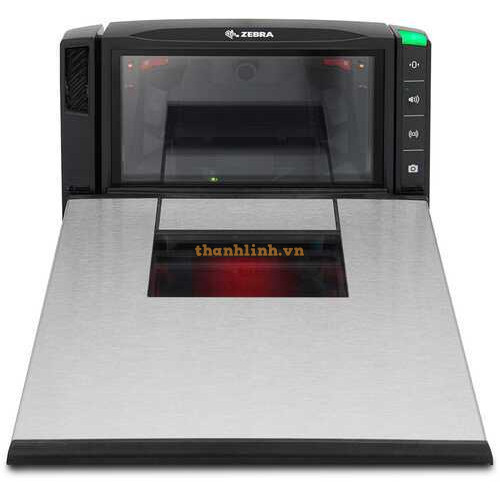

Model: Zebra MP72

Decode · 1D, 2D

Supported Host Interfaces · USB, RS232, IBM46XX over RS485, SNAPI

Scale · 30 lb in 0.01 lb increments/15 kg in 5 g increments

· Maximum static weight: 300 lb/136 kg

· Single-cable and dual-cable protocols

· Compatible with Mettler price computational scales

Horizontal Glass · Sapphire and DLC coated; leek bar option for scale models

Ports · One shared POS port for USB/RS-232/IBM RS-485

· Three USB peripheral ports

· Two powered RS-232 peripheral ports

· Checkpoint Interlock port

· Remote scale display port

· Color Camera USB 3 type-C

Power · 12VDC from POS interface cable (USB PlusPower) Zebra PWR-BGA12V50W0WW power supply: 90-264 V (110-240 nominal), 47-63Hz (50-60 nominal)

· Idle Mode: 2.0 W (typical)

· Active Mode: 2.75 W (typical)

Illumination · Intelligent illumination

Sides Read/Scan Zone · Reading of linear and 2D codes in all planes

Resolution · HD Camera

Operating Temperature · 32.0° to 104.0° F/0.0° to 40.0° C

Storage Temperature · -40.0° to 158.0° F/-40.0° to 70.0° C

Humidity · 20% to 95%, non-condensing

Environmental Sealing · IP5X

Dimensions · Long scanner and scanner/scale:

20 in. L x 11.5 in. W x 4.00 in. D x 5.00 in H

506 L x 292 mm W x 101 mm D x 128 mm H

· Medium scanner and scanner/scale:

15.7 in. L x 11.5 in. W x 4.00 in. D x 5.00 in. H

398 mm L x 292 mm W x 101 mm D x 128 mm H

· Short scanner:

13.9 in. L x 11.5 in. W x 4.00 in. D x 5.00 in. H

351 mm L x 292 mm W x 101 mm D x 128 mm H

Weight · Long scanner: 13.10 lb/5.94 kg

· Long scanner/scale: 17.85 lb/8.10 kg

· Medium scanner: 11.20 lb/5.06 kg

· Medium scanner/scale: 15.95 lb/7.22 kg

· Short scanner: 11.55 lb/5.22 kg
