THÔNG SỐ KỸ THUẬT
Dimensions
Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D
18.5 cm H x 7.6 cm W x 13.2 cm D
Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D
18.5 cm H x 7.6 cm W x 14.2 cm D
Weight Corded: 10.9 oz./309 g
Cordless: 14.5 oz./411 g
Input Voltage Range
Host powered: 4.5 VDC min., 5.5 VDC max.
External power supply: 11.4 VDC min., 12.6 VDC max.
Operating Current
DS3608-HD (corded): 360 mA (RMS typical)
Standby Current
DS3608-HD (corded): 100 mA (RMS typical)
Color Industrial Green
Supported Host Interfaces
USB, RS232, Keyboard Wedge
Industrial Ethernet: EtherNet/IP, Profinet, Modbus
TCP & Std TCP/IP
Battery
PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
User Indicators
Direct decode indicator; LEDs; beeper; vibration
Scans per Full Charge 100,000+
Image Capture Basic
Illumination
Two (2) warm white light LEDs
Aimer 655 nm laser
Imager Field of View Horizontal: 31°, Vertical: 23°
Image Sensor 1,280 x 960 pixels
Minimum Print Contrast
15% minimum reflective difference
Skew/Pitch/Roll Skew: ± 60°
Pitch: ± 60°
Roll: ± 360°

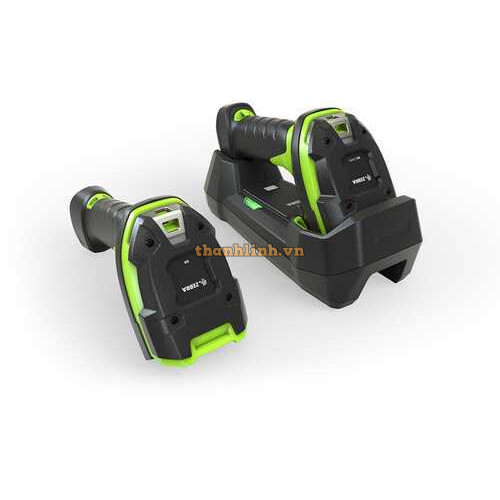

Máy quét mã vạch Zebra DS3600-HD
- Thương hiệu: ZEBRA
- Mã số sản phẩm: DS3600-HD
- Tình trạng kho: Đặt hàng qua Zalo hoặc Email
-
Xin liên hệ
