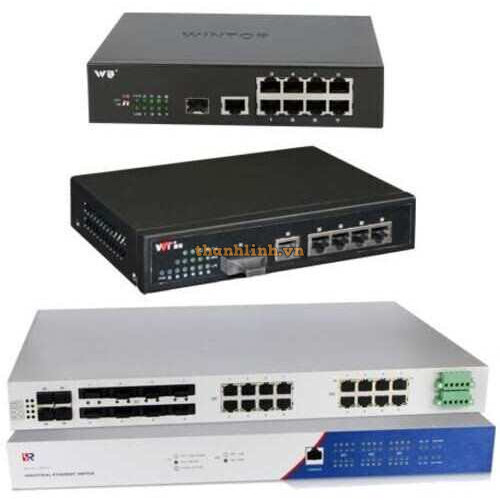

16-Port GF + 4-Port 10GBase-X SFP+ + 8-Port GC Layer 3 Managed Switch WINTOP YT-CM5728-4WF8GC16GF
- Cung cấp 4 cổng sợi quang 10 Gigabit, 8 cổng SFP/RJ45 Combo Gigabit và 16 cổng đồng Gigabit.
- Thiết kế không quạt, đạt cấp bảo vệ IP30, vỏ kim loại chống va đập.
- Điện áp áp dụng: AC220V.
- Đáp ứng các yêu cầu về tương thích điện từ (EMC), bao gồm chống sét, phóng tĩnh điện, đột biến và xung nhiễu.
- Hỗ trợ nhiều phương pháp quản lý như Web, CLI, Telnet, SSH và giao diện Web song ngữ (Trung/Anh).
- Hỗ trợ cấu hình ERPS, STP, RSTP và MSTP.
- Hỗ trợ định tuyến tĩnh, RIP, định tuyến động OSPF, VRRP, Smart Stacking, IS-IS, BGP và PIM.
- Hỗ trợ giao thức SNMP V1/V2c/V3.
Technical Parameters
Support standards IEEE 802.3i (10Base-T), IEEE 802.3u(100Base-T)
IEEE 802.3ab(1000Base-T), IEEE 802.3z(1000Base-SX/LX)
IEEE 802.3ae(10GBase-X)
IEEE 802.3ad (port aggregation), IEEE802.3x (flow control)
IEEE 802.1p (priority), IEEE 802.1Q (VLAN)
IEEE 802.1D (STP), IEEE 802.1w (RSTP)
IEEE 802.1s (MSTP), IEEE 802.1p (QoS)
Protocol IGMP Snooping, GMRP, GVRP, DHCP, SNMPv1/v2c/v3, TFTP, NTP, SNTP, Ping, Traceroute, RMON, HTTPS, SSH, Telnet, Syslog, ERPS, MLD, LLDP, LACP, ACL, VRRP, RIP, OSPF, BGP, IS-IS, PIM
MIB: MIB-II, BRIDGE MIB, Ethernet MIB, IF MIB, RMON MIB Group 1, 2, 3, 9
Switching features Qos queue: 8
Packet forwarding rate: 252Mpp
VLAN-ID: 1-409
Backplane bandwidth: 598Gbp
MAC address table: 8K
Message cache size: 42Mbit
Interface Debug port: RS-232 (Interface type: RJ45 slot)
10G optical port: 10G/1000Mbps (Interface type: SFP slot)
Gigabit optical port: 1000Mbps (Interface type: SFP slot)
Gigabit electrical port: 10/100/1000 Mbps adaptive, Full/Half duplex mode, supports MDI/MDI-X
LED indicator: PWR, Link/ACT, SPD, RUN
Power requirements Input voltage: AC 220V
Physical properties Shell: Iron shell IP30 protection
Size: 440 x 280x 44 mm
Weight: 4380g
Installation method: rack
Environmental restrictions Operating temperature: - 40 ~ 45°C (-40 ~ 113°F)
Storage temperature: -40 ~ 85°C (-40 ~ 185°F)
Ambient relative humidity: 5 ~ 95% (non-condensing)
Standards and Certifications Electromagnetic susceptibility (EMS): IEC61000-4-2 (ESD) Level 4 , IEC 61000-4-4 (EFT) Level 4, IEC 61000-4-5 (Surge) Level 4 (4kv port lightning protection, 4kv power supply lightning protection)
Vibration resistance: IEC 60068-2-6
Impact resistance: IEC 60068-2-27
Free fall: IEC 60068-2-32
Certification: CE, FCC, Rohs, Ministry of Industry and Information Technology network access license, Ministry of Public Security inspection report
MTBF (mean time between failures) Time: 500000 hours
- Bảo hành: 24 tháng.
Thiết bị chuyển mạch Công Nghiệp 4×10GBase-X SFP+ slot++8 ×1000Base Combo port+16×1000Base-X SFP slot single power, AC220V Wintop YT-CM5728-4WF8GC16GF
- Thương hiệu: WINTOP
- Mã số sản phẩm: YT-CM5728-4WF8GC16GF
- Tình trạng kho: Liên hệ
-
17.930.000 đ
17.930.000 đ
