System Information

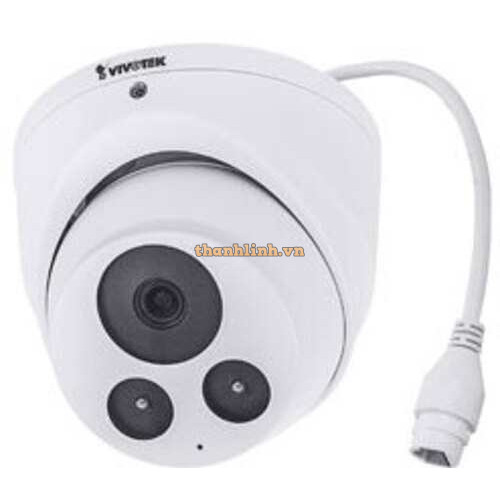

Model IT9380-H

CPU Multimedia SoC (System-on-Chip)

Flash 128MB

RAM 512MB

Camera Features

Image Sensor 1/2.7″ Progressive CMOS

Max. Resolution 2560×1920 (5MP)

Lens Type Fixed-focal

Focal Length f = 3.6 mm

Aperture F2.0

Auto-iris Fixed-iris

Field of View 76° (Horizontal)

59° (Vertical)

100° (Diagonal)

Shutter Time 1/5 sec. to 1/32,000 sec.

WDR Technology WDR Pro

Day/Night Yes

Removable IR-cut Filter Yes

IR Illuminators Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2

Minimum Illumination 0.03 Lux @ F2.0 (Color)

<0.005 Lux @ F2.0 (B/W)

0 Lux with IR illumination on

Pan Range 360°

Tilt Range 70°

Rotation Range 360°

Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

On-board Storage Slot type: MicroSD/SDHC/SDXC card slot

Seamless Recording

Video

Video Compression H.265, H.264, MJPEG

Maximum Frame Rate 20 fps @ 2560×1920

Maximum Streams 3 simultaneous streams

S/N Ratio 67 dB

Dynamic Range 120 dB

Video Streaming Adjustable resolution, quality and bitrate, Smart Stream III

Image Settings Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, video rotation

Audio

Audio Capability One-way Audio

Audio Compression G.711, G.726

Audio Interface Built-in microphone

Effective Range 5 meters

Network

Users Live viewing for up to 10 clients

Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP

Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)

* It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

ONVIF Supported, specification available at www.onvif.org

Solution Integration

Video Motion Detection Five-window video motion detection

VADP Package Trend Micro IoT Security, Stratocast

Alarm and Event

Alarm Triggers Motion detection, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, manual trigger, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)

Alarm Events Event notification via email, HTTP, FTP, NAS server, SD card

File upload via email, HTTP, FTP, NAS server, SD card
