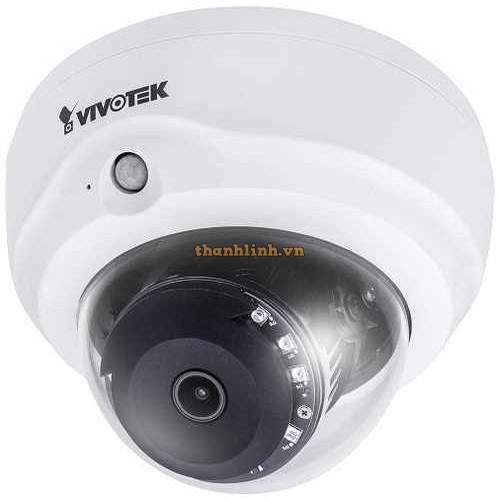

• Camera IP Dome hồng ngoại 2.0 Megapixel Vivotek FD816BA-HF2

Camera IP Dome hồng ngoại 2.0 Megapixel Vivotek FD816BA-HF2

- Cảm biến hình ảnh: 1/2.7 inch Progressive CMOS.

- Độ phân giải: 1920 x 1080 (2 Megapixel).

- Tốc độ khung hình: 30fps@ 1920 x 1080.

- Ống kính: f = 2.8mm.

- Tầm quan sát hồng ngoại: 30 mét, hỗ trợ Smart IR.

- Chuẩn nén hình ảnh: H.264/ MJPEG.

- Chức năng cảm biến hồng ngoại phát hiện chuyển động PIR (Passive InfraRed sensor).

- Hỗ trợ Smart Stream tối ưu hiệu quả băng thông.

- Chức năng chống sương mù Defog.

- Chức năng chống ngược sáng WDR.

- Chức năng giảm nhiễu 3DNR.

- Hỗ trợ chức năng SNV (Supreme Night Visibility) trong điều kiện ánh sáng yếu.

- Hỗ trợ ứng dụng VCA (Video Content Analysis) dành riêng cho camera Vivotek.

- Hỗ trợ khe cắm thẻ nhớ MicroSD/ SDHC/ SDXC.

- Hỗ trợ âm thanh 2 chiều.

- Nguồn điện: 12VDC/ PoE 802.3af.

Specifications

Model FD816BA-HF2

System

CPU Multimedia SoC (System-on-Chip)

Flash 1Gb

RAM 2Gb

Camera Features

Image Sensor 1/2.7 inch Progressive CMOS

Maximum Resolution 1920 x 1080 (2MP)

Lens Type Fixed-focal

Focal Length f= 2.8mm

Aperture F1.8

Field of View 122° (Horizontal), 66° (Vertical), 142° (Diagonal)

Shutter Time 1/5s ~1/32,000s

WDR Technology WDR

Minimum Illumination 0.15 Lux @ F1.8 (Color), 0.01 Lux @ F1.8 (B/W)

Day/Night Removable IR-cut filter for day & night function

Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in,12x built in)

IR Illuminators Built-in IR illuminators, effective up to 30 meters with Smart IR (IR LED*8)

On-board Storage Slot type: MicroSD/SDHC/SDXC card slot; Seamless Recording

Video

Compression H264, MJPEG

Maximum Streams 4 simultaneous streams

Dynamic Range 100 dB

Video Streaming Adjustable resolution, quality and bitrate, Smart Stream

Image Settings Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3D noise reduction, video rotation, defog

Network

User Live viewing for up to 10 clients

Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP,ARP, SSL, TLS

Interface 10 Base-T/100 BaseTX Ethernet (RJ45)

Audio

Audio Capability Two-way Audio (full duplex)

Compression G711, G726

Interface Built-in microphone

External line input

External line output

Intelligent Video

VCA Line crossing detection, field detection, loitering detection

Video Motion Detection Five-window video motion detection

General

Power Input 12VDC; IEEE 802.3af/at PoE Class 0

Power Consumption Max. 9W

Dimensions Ø 138 x 103 mm

Weight 541g

- Sản xuất tại Taiwan.

- Bảo hành 24 tháng.
