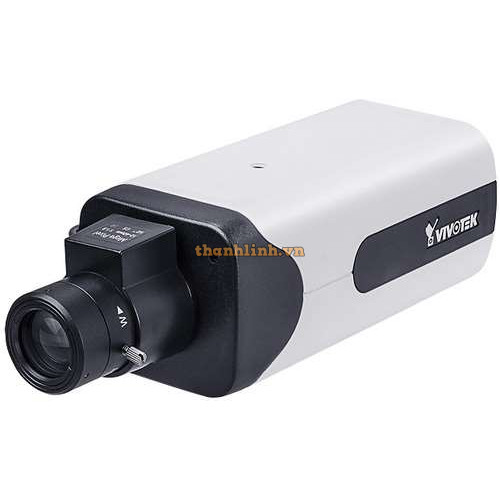

Model IP9165-LPC Kit (Highway, 9-50mm, i-CS)

IP9165-LPC-A Kit (Street, 9-50mm, i-CS)

Max. Speed Highway: 110MPH (180 km/hr)

Street: 60MPH (90 km/hr)

IR Threshold IR on: 300 Lux

IR off: 600 Lux

RS485 configurable

Shutter Time Highway: 1/1,600 to 1/10,000 sec.

Street: 1/1,000 to 1/10,000 sec.

Max. Shutter Time 1/5 to 1/32,000 sec.

IR Illuminators Highway: 80W, 20° ~ 40° remote control beam angle

Street: 48W, 10° ~ 30° remote control beam angle, embedded IR illuminator

Capture Range Up to 35 meters

Captured Lanes Highway:

Road-side: 2 Lanes

Gantry: 2 Lanes

Street:

Road-side: 1 Lane

Gantry: 2 Lanes

* Suggested width per lane: 3.5 ~ 4M

Power Input AC/DC 24V

Power Consumption Highway:

Max. 110 W, AC/DC 24V

Suggested Power: AC 24V or DC 24V/ 5A

Street:

Max. 78 W, AC/DC 24V

Suggested Power: DC 24V or AC 24V / 3.5A

Weight Highway: 6,482 g

Street: 6,200 g

Housing Weather-proof IP68-rated housing

Vandal-proof IK10-rated housing

Operating Temperature Starting Temperature:

0°C ~ 60°C (32°F ~ 140°F)

Working Temperature:

-20°C ~ 60°C (-4°F ~ 140°F)

-40°C ~ 60°C (-40°F ~ 140°F), with optional cold start heater

Humidity 90%

Video

Compression H.265, H.264, MJPEG

Maximum Streams 4 simultaneous streams

Image Settings Adjustable image size, quality and bit rate;Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, AE speed, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, DIS, video rotation, lens profile

Network

Users Live viewing for up to 10 clients

Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP

Interface 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45)

* It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard.

ONVIF Supported, specification available at www.onvif.org

Intelligent Video

Video Motion Detection Five-window video motion detection

Alarm and Event

Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)

Alarm Events Event notification via digital output, email, HTTP, FTP, NAS server, SD card, push notification

File upload via email, HTTP, FTP, NAS server, SD card

General

Smart Focus System Remote Focus with i-CS lens

RBF (Remote Back Focus) reserved

IP Camera Connectors RJ-45 cable connector for Network/PoE connection *1

Audio input *1

Audio output *1

DC 12V power input *1

AC 24V power input *1

Digital input *2

Digital output *2

RS485 *1

BNC *1

Safety Certifications IP Camera: CE, LVD, FCC Class B, VCCI, C-Tick, UL

Warranty 36 months

System Requirements

Operating System Microsoft Windows 8/7

Mac 10.12 (Chrome only)

Web Browser Chrome 58.0 or above

Internet Explorer 10/11

Other Players VLC: 1.1.11 or above

QuickTime: 7 or above
