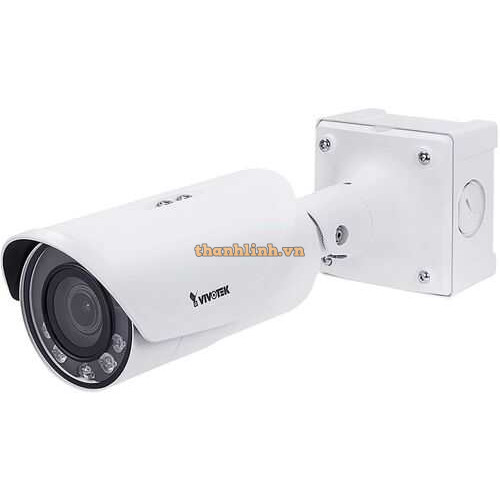

Model IB9391-EHT

System Information

CPU Multimedia SoC (System-on-Chip)

Flash 128MB

RAM 1GB

Camera Features

Image Sensor 1/2″ Progressive CMOS

Max. Resolution 3840×2160

Lens Type Vari-focal, Remote Focus

Focal Length f = 3.9 ~ 10 mm

Aperture F1.5 ~ F2.7

Iris type P-iris

Field of View 45° ~ 95° (Horizontal)

25° ~ 52° (Vertical)

52° ~ 111° (Diagonal)

Shutter Time 1/5 sec. to 1/32,000 sec.

WDR Technology WDR Pro

Minimum Illumination 0.02 Lux @ F1.5 (Color)

0.01 Lux @ F1.5 (B/W)

0 Lux with IR illumination on

Day/Night Removable IR-cut filter for day & night function

Tilt Range 90°

Rotation Range 180°

Pan/Tilt/Zoom Functionalities ePTZ:48x digital zoom

(4x on IE plug-in, 12x built in)

IR Illuminators Built-in IR Illuminators up to 50 meters with Smart IR II

On-board Storage Slot type: MicroSD/SDHC/SDXC card slot

Seamless Recording

Video

Compression H.265, H.264, MJPEG

Maximum Frame Rate 30 fps @ 3840×2160 (WDR Pro on)

120 fps @ 1920×1080 (WDR Pro off)

Maximum Streams 3 simultaneous streams

S/N Ratio 60.5 dB

Dynamic Range 120 dB

Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III

Image Settings Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24); Scheduled profile settings, defog, 3DNR, video rotation, AE speed, DIS, HLC

Audio

Audio Capability Two-way Audio

Compression G.711, G.726

Interface External microphone input

External line output

Network

Users Live viewing for up to 10 clients

Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS/SSL

Interface 10 Base-T/100 Base-TX Ethernet /1000 Base-T (RJ-45)

* It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

ONVIF Supported, specification available at www.onvif.org

Intelligent Video

Video Motion Detection Five-window video motion detection

Alarm and Event

Alarm Triggers Motion detection,manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, advanced motion detection, MircoSD card life expectancy

Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card

File upload via HTTP, SMTP, FTP, NAS server and MicroSD card

General

Connectors RJ-45 cable connector for Network 10/100/1000 Mbps PoE connection*1

Audio input*1

Audio output*1

DC 12V power input*1

AC 24V power input *1

Digital input*1

Digital output*1

LED Indicator System power and status indicator

Power Input IEEE 802.3at Class4 PoE

AC 24V/DC 12V

Power redundancy

Power Consumption Max: 25 W

Dimensions 121 x 121 x 394 mm (w/ junction box)

118 x 118 x 333 mm (w/o junction box)

Weight 2,235 g (w/ junction box)

1,755 g (w/o junction box)

Casing IP66, IP67, IK10, NEMA 4X

Safety Certifications CE, FCC Class A, VCCI, C-tick, UL

Operating Temperature Starting Temperature:-40°C ~ 60°C (-40°F ~ 140°F)

Working Temperature (IR off):-50°C ~ 60°C (-58°F ~ 140°F)

Working Temperature (IR on):-50°C ~ 50°C (-58°F ~ 122°F)

Humidity 90%

Warranty 36 Months

System Requirements

Operating System Microsoft Windows 8/7

Web Browser Mozilla Firefox 7~43 (streaming only)

Internet Explorer 10/11

Other Players VLC: 1.1.11 or above

Quicktime: 7 or above

Included Accessories

Others Junction box(AM-719), sunshield, waterproof connectors, quick installation guide, warranty card, alignment sticker, desiccant bags
