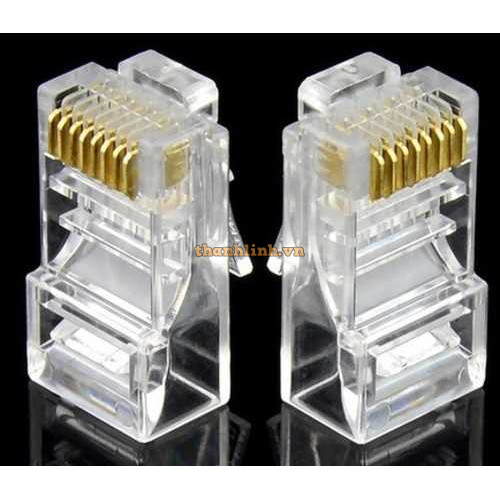

Đầu nối RJ45-Modular Plug LS UTP CAT5E (LS-MP-UC5E-RJ45)

Part Number: LS-MP-UC5E-RJ45.

8P8C Category 5e unshielded modular plug for suitable stranded & solid wire, 50micro-inch gold coating.

Application

- Horizontal Distribution & Backbone Cabling.

- 4/16 Mbps Token Ring (IEEE 802.5).

- 10/100/1000 BASE-T (IEEE 802.3).

- 155 Mbps.

- 100Mbps TP-PMD.

- ISDN, ADSL.

- Analog & Digital voice(VoIP) and video.

- Full broadband and baseband video.

- RoHS compliant.

Specification

FEATURE

Approvals UL Certified

Category ANSI/TIA-568-C.2 Category 5e

Wiring scheme 47 CFR part 68 and IEC 603-7

ELECTRICAL

Current Rating 1.5A

Insulation Resistance > 500MΩ

Contact Resistance < 20mΩ

Dielectric Strength 1000 VAC (RMS)

Rated Voltage, Current < 30VAC at1.5A

MECHANICAL

Insertion Life 750 Mating cycles

Pull Force 20 lbs(N)

Temperature ‐20℃ ~ 68℃

Humidity 10% ~ 90% (RH)

Contact Accept 24 AWG (Stranded & Solid Wire)

PHYSICAL

Plug Housing Polycarbonate (PC), UL 94V-0 or 2 rated

Contact Blade Phosphor bronze plated with 50uin thick gold over nickel undercoat

- Sản xuất tại Trung Quốc.
