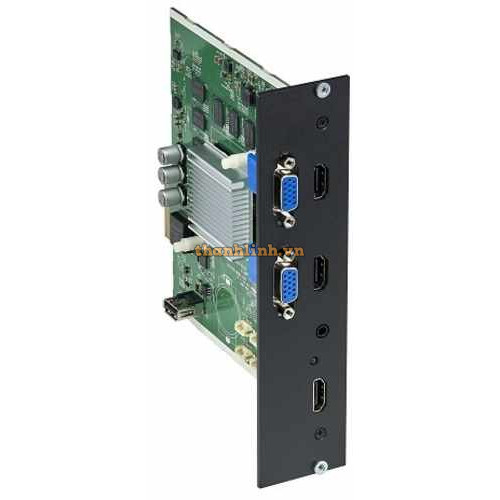

2 Monitor Decoder Board for SPD-1660R Hanwha Techwin WISENET SPD-260B

- Max. 16 monitors (HDMI 16ea / VGA 16ea)

o HDMI / VGA: Clone

- Max. 4K resolution, H.265, H.264, MJPEG support

- Video decoding up to 12MP resolution camera

- Decoding bandwidth: 600Mbps

- Various view mode: 1 / 4 / 6 / 8 / 9 / 13 / 16 / 2V / 3V

- Up to 20 Layout sequence per each monitor

- Manage using SSM and web viewer

- Monitor merge: 1x2, 2x1, 2x2, 2x3, 3x2, 2x4, 2x5, 4x2, 3x3, 3x4, 4x3, 4x4, 3x5, 5x3, 5x2

Specifications

Model SPD-260B

HARDWARE

Video Output HDMI 2ea (1ea : up to 4K, 1ea : up to 1080p)

VGA 2ea (up to 1080p)

Format HDMI1: 3840 x 2160@60Hz/30Hz, 2560 x 1440@60Hz/30Hz;

1920 x1080@60Hz, 1280 x 1024@60Hz, 1280 x 720@60Hz

HDMI2: 1920 x 1080@60Hz, 1280 x 1024@60Hz, 1280 x 720@60Hz

VGA1/VGA2: 1920 x 1080@60Hz, 1280 x 1024@60Hz, 1280 x 720@60Hz

Video Input HDMI 1ea

Format 1920 x 1080@60Hz, 1280 x 720@60Hz

LED Decoding operation

Electrical Power 12V / 5V / 3.3V

Power Consumption Max, 9W

Environmental Operating Temperature 0°C ~ 40°C (+32°F ~ 104°F)

Humidity 20% ~ 85% RH

Mechanical Dimension (WxHxD) 173.6 x 40.4 x 158.9mm

Weight 284g

SOFTWARE

Video Codec H.265 / H.264 / MJPEG

Support Resolution 12MP (4000x3000), 8MP (4096x2160), 5M (2592 x 1944), 3M (2048 x 1536),

2M (1920 x 1080, 1600 x 1200), 1.3M and below (1280 x 1024, 1280 x 960,

1280 x 720, 800 x 600, 720 x 576 704 x 576, 640 x 480, 640 x 360, 352 x 288,

320 x 240, 320 x 180, 176 x 144) Hallway mode (1080 x 1920, 720 x 1280)

Max. Channel 4CH 4K@30fps, 16CH 2M (1080P)@30fps

Max. Decoding Resolution 30fps@8MP, up to 12MP

Division (monitor) (HDMI) 1 / 4 / 6 / 8 / 9 / 13 / 16 / 2V / 3V

Layout Up to 20ea / Monitor, Sequence support

Audio Codec G.711, G.726, AAC

- Bảo hành: 24 tháng.
