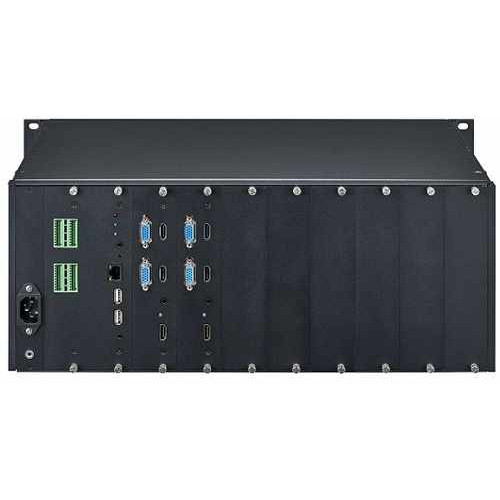

16 Monitor Decoder Hanwha Techwin WISENET SPD-1660R

- Max. 16 monitors (HDMI 16ea / VGA 16ea)

o HDMI / VGA: Clone

- Max. 4K resolution support

- Video decoding up to 12MP resolution camera

- Decoding bandwidth: 600Mbps

- H.265, H.264, MJPEG support

- Various view mode: 1 / 4 / 6 / 8 / 9 / 13 / 16 / 2V / 3V

- Up to 20 Layout sequence per each monitor

- Manage using Wisenet SSM (v2.0) and web viewer

- Monitor merge: 1x2, 2x1, 2x2, 2x3, 3x2, 2x4, 2x5, 4x2, 3x3,3x4, 4x3, 4x4, 3x5, 5x3, 5x2

Specifications

HARDWARE

Video Output HDMI Max. 16ea (8ea : up to 4K, 8ea : up to 1080p)

VGA Max. 16ea (up to 1080p)

Format HDMI1: 3840 x 2160@60Hz/30Hz, 2560 x 1440@60Hz/30Hz

1920 x 1080@60Hz, 1280 x 1024@60Hz, 1280 x 720@60Hz

HDMI2: 1920 x 1080@60Hz, 1280 x 1024@60Hz, 1280 x 720@60Hz

VGA1/VGA2: 1920x1080@60Hz, 1280x1024@60Hz, 1280x720@60Hz

Video Input HDMI 1ea per each board

Format 1920 x 1080@60Hz, 1280 x 720@60Hz

External Ethernet 1ea (10/10/1,000 BASE-T)

Serial RS-485 1ea (Reserved), Half deplex

USB USB 2.0 2ea (Reserved)

Audio Out 1ea

Alarm In / Out 16ea / 8ea

LED Power, Decoding operation, Network

Electrical Power 100 ~ 240V AC ±10%, 50/60Hz

Power Consumption Max. 90W (with 8 SPD-260B installed)

Environmental Operating Temperature 0°C ~ 40°C (+32°F ~ 104°F)

Humidity 20% ~ 85% RH

Mechanical Color / Material Black

Dimension (WxHxD) 487.8 x 187.0 x 363.4mm

Weight 6.79 kg (without SPD-260B)

SOFTWARE

Operating System Embedded Linux

Video Codec H.265 / H.264 / MJPEG

Max. Channel 32CH 4K@30fps, 48CH 5M@30fps, 64CH 4M@30fps

80CH 3M@30fps, 128CH 2M (1080P)@30fps

Camera Resolution 30fps@8MP, up to 12MP

Max. Bandwidth

(Network / Decoding) 512Mbps / 600Mbps

Division (monitor) (HDMI) 1 / 4 / 6 / 8 / 9 / 13 / 16 / 2V / 3V

Layout Supports up to 20 per monitor, Supports sequence

Audio Codec G.711, G.726, AAC
