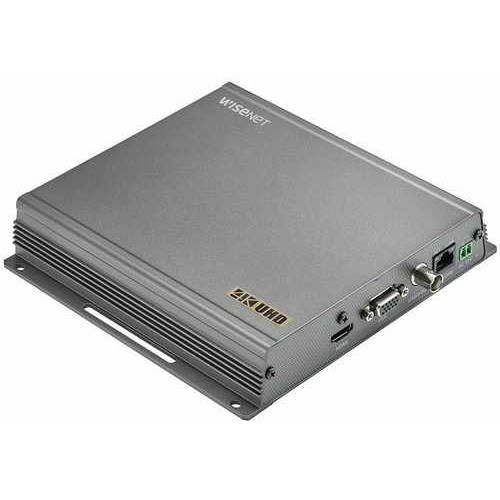

48-Channel Network Video Decoder Hanwha Techwin WISENET SPD-151

- Video decoding up to 48 cameras on HDMI / VGA

- 1 camera decoding on BNC

- Max. 4K resolution@HDMI, Max. 1080p@VGA

- Various view mode

o (HDMI) 1 / 2x2 / 3x3 / 4x4 / 5x5 / 6x6 (32Ch Only)

o (VGA) 1 / 2x2 / 3x3 / 4x4

o (BNC) 1 Tile merge support

- 12V DC, PoE

- Up to 49CH, H.265 / H.264 / MJPEG codec

- Layout Sequence Support

- Management using Web-Viewer

Specifications

Model SPD-151

NETWORK

CPU Embedded CPU

Operating System Embedded Linux

Output HDMI 1ea (up-to 4K)

VGA 1ea (up-to 1080p)

CVBS 1ch (BNC 1ea)

Video-out

Format 3840 x 2160@60Hz/30Hz (HDMI1),

2560 x 1440@60Hz/30Hz (HDMI1),

1920 x 1080@60Hz,

1280 x 1024@60Hz,

1280 x 720@60Hz

External Ethernet 1ea (10/100/1000BASE-T)

USB USB 2.0 2ea

Audio Out 1 out

LED Power, Network

Electrical Power 12V DC, PoE (IEEE802.3af)

Power Consumption Max. 21.6W (12V DC), Max. 12.95W (PoE)

Environmental Operating Temperature 0°C ~ 40°C (+32°F ~ 104°F)

Humidity 20% ~ 85% RH

Mechanical Dimension (WxHxD) 178.0 x 34.0 x 187.8mm

Weight Approx. 0.68Kg

SOFTWARE

Video Codec H.265 / H.264 / MJPEG

Max. Decoding

Performance 16 X 2M (1080P)@30fp, 8MP@30fps

Max. Decoding

Resolution Up-to 12MP

Max. Decoding

Bandwidth 200Mbps

Division (monitor) (HDMI) 1/2x2/3x3/4x4/5x5/6x6(32Ch Only)

(VGA) 1/2x2/3x3/4x4

(BNC) 1
