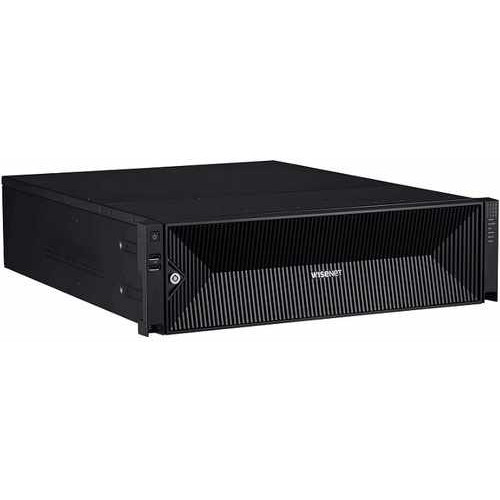

Đầu ghi hình camera IP 64 kênh Hanwha Techwin WISENET PRN-6410B4

- Wisenet PRN-6410B4 là dòng đầu ghi hình camera IP chất lượng cao, công nghệ AI thông minh cùng với khả năng kết nối camera độ phân giải rất cao lên đến 8K (32MP).

Features

- Up to 8K (32MP) Resolution

- AI search (BestShot, Attribute)

- Object detection and classification(Person, Face, Vehicle)

- SATA 16ea (Up to 160TB)

- Easy Channel/Event/Alarm configuration

- Video preview support

- Dynamic Event support

- Bookmark management (Up to 100 set)

- Simple connection with mobile phone through QR code and QR

Specifications

Display

Network camera Inputs Max. 64CH

Resolution 32MP ~ CIF

Protocols Wisenet, ONVIF

Decoding Local Display HDMI 1: 3840 x 2160 (30Hz)

HDMI 2: 1920x1080 (60Hz)

Multi Screen Display [Local Monitor] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9/ 13/ 16/ 25/ 36/ 64/ Sequence

[Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9

Resolution 32M (15fps, H.265 Only), 12M (30fps, H.265 Only), 8.3M (120fps), 1080p (480fps), 720P (960fps), D1(1920fps)

Performance

Operating System Embedded Linux

Record Compression H.265, H.264, MJPEG, WiseStream(H.265, H.264)

Recording Bandwidth Max. 400Mbps

Resolution 32MP ~ CIF

Mode Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark

Event Trigger Alarm Input, Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event

Event Action e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out

Search & Play Playback Bandwidth Max. 64Mbps (64CH simultaneously)

User Max. 4 Users (Local 1, Remote 3)

Simultaneous Playback Max. 112CH (Local 64CH, Remote 16CH per user)

Fisheye Dewarping CMS

Mode Date & Time (Calendar), Event list, Text Search, Smart Search

Resolution CIF ~ 32MP (Up to H.264 9MP, H.265 32MP)

Playback Control Fast/Slow Forward / Backward, Move one step Up / Down
