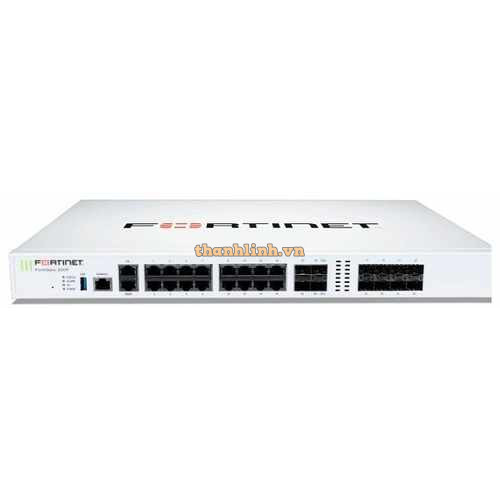

Firewall Fortinet FortiGate 201F (FG-201F-BDL-950-12)

- Support 18 x GE RJ45 (including 1 x MGMT port, 1 X HA port, 16 x switch ports), 8 x GE SFP slots, 4 x 10GE SFP+ slots, NP6XLite and CP9 hardware accelerated, 480GB onboard SSD storage.

- IPS Throughput: 5Gbps.

- NGFW Throughput: 3.5Gbps.

- Threat Protection Throughput: 3Gbps.

- Firewall Latency (64 byte, UDP): 4.78μs

- Firewall Throughput (Packet per Second): 16.5Mpps.

- Form Factor (supports EIA/non-EIA standards): Ear Mount, 1 RU.

- AC Power Supply: 100-240V AC, 50/60 Hz.

- Dimension (H x W x L): 44 x 432 x 342 mm.

Specifications

Interfaces and Modules - GE RJ45 Ports: 16

- GE RJ45 Management/HAP: 1/1.

- GE SFP Slots: 8

- 10 GE SFP+ FortiLink Slots (default): 2

- 10 GE SFP+ Slots: 2

- USB Port: 1

- Console Port: 1

Onboard Storage 1x 480 GB SSD

Trusted Platform Module (TPM) Yes

Bluetooth Low Energy (BLE) Yes

System Performance-Enterprise Traffic Mix IPS Throughput: 5 Gbps

NGFW Throughput: 3.5 Gbps

Threat Protection Throughput: 3 Gbps

System Performance and Capacity - IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP): 27 / 27 / 11 Gbps

- Firewall Latency (64 byte, UDP): 4.78 μs

- Firewall Throughput (Packet per Second): 16.5 Mpps

- Concurrent Sessions (TCP): 3 Million

- New Sessions/Second (TCP): 280000

- Firewall Policies: 10000

- IPsec VPN Throughput (512 byte): 13Gbps

- Gateway-to-Gateway IPsec VPN Tunnels: 2000

- Client-to-Gateway IPsec VPN Tunnels: 16 000

- SSL-VPN Throughput: 2Gbps

- Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode): 500

- SSL Inspection Throughput (IPS, avg. HTTPS): 4 Gbps

- SSL Inspection CPS (IPS, avg. HTTPS): 3500

- SSL Inspection Concurrent Session (IPS, avg. HTTPS): 300000

- Application Control Throughput (HTTP 64K): 13 Gbps

- CAPWAP Throughput (HTTP 64K): 20 Gbps

- Virtual Domains (Default/Maximum): 10/10

- Maximum Number of FortiSwitches Supported: 64

- Maximum Number of FortiAPs (Total / Tunnel): 256 / 128

- Maximum Number of FortiTokens: 5000

- High Availability Configurations: Active-Active, Active-Passive, Clustering

Dimensions and Power - Height x Width x Length (mm): 44 x 432 x 342

- Weight: 4.6 kg

- Form Factor (supports EIA/non-EIA standards): Ear Mount, 1 RU

- AC Power Supply: 100–240V AC, 50/60 Hz

- Power Consumption (Average / Maximum): 104.52 W / 121.94 W

- Current (Maximum): 100V / 2A, 240V / 1.2A

- Heat Dissipation: 436.98 BTU/h

- Redundant Power Supplies: Yes (Default dual non-swappable AC PSU for 1+1 Redundancy)

- Power Supply Efficiency Rating: 80Plus Compliant

Operating Environment and Certifications - Operating Temperature: 32°–104°F (0°–40°C)

- Storage Temperature: -31°–158°F (-35°–70°C)

- Humidity: 20%–90% non-condensing

- Noise Level: 49.9 dBA

- Forced Airflow: Side to Back

- Operating Altitude: Up to 10 000 ft (3048 m)

- Compliance: FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI

- Certification: USGv6/IPv6

- Bảo hành: 12 tháng.
