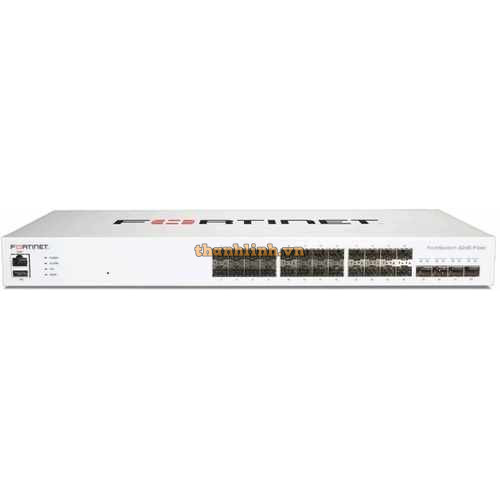

Fortinet FortiGate Switch FS-424E-FIBER

- Layer 2/3 FortiGate switch controller compatible switch with 24xGE SFP and 4x 10GE SFP+ Uplinks.

- Switching Capacity (Duplex): 128Gbps

- Packets Per Second (Duplex): 204Mpps.

- MAC Address Storage: 32K.

- Memory: 1GB DDR4.

- Flash: 256MB.

- Power Required: 100–240V AC, 50/60 Hz.

- Operating Temperature: 32°–122°F (0°–50°C).

- Dimensions (Height x Depth x Width): 44 x 200 x 440 mm.

- Weight: 2.55kg.

Specifications

Hardware Specifications

Total Network Interfaces 24x GE SFP and 4x 10GE SFP+ ports

Note: SFP+ ports are compatible with 1 GE SFP

Dedicated Management 10/100 Port 1

RJ-45 Serial Console Port 1

Form Factor 1 RU Rack Mount

Mean Time Between Failures > 10 years

System Specifications

Switching Capacity (Duplex) 128 Gbps

Packets Per Second (Duplex) 204 Mpps

MAC Address Storage 32K

Network Latency < 1µs

VLANs Supported 4 K

Link Aggregation Group Size 8

Total Link Aggregation Groups Up to number of ports

Packet Buffers 4 MB

Memory 1 GB DDR4

Flash 256 MB

ACL 1.5k

Spanning Tree Instances 16

Route Entries (IPv4) 16k

Host Entries 16k

Dimensions

Height x Depth x Width (mm) 44 x 200 x 440

Weight 2.55 kg

Environment

Power Required 100–240V AC, 50/60 Hz

Power Supply AC built in

Redundant Power Redundant AC

Power Consumption* (Average/ Maximum) 36 W / 38 W

Heat Dissipation 132.5 BTU/h

Operating Temperature 32°–122°F (0°–50°C)

Storage Temperature -4°–158°F (-20°–70°C)

Humidity 5%–95% non-condensing

Air-Flow Direction Side-to-back

Noise Level 32.8 dBA

Certification and Compliance FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

- Bảo hành: 12 tháng.
