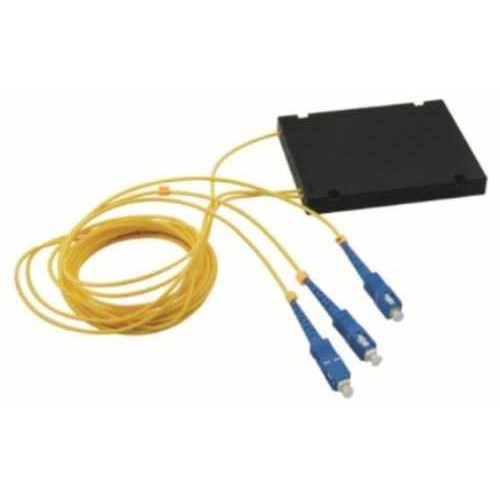

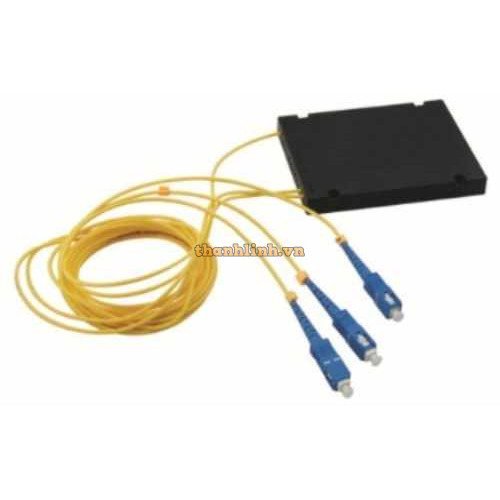

Fibre Optical PLC Splicer VIVANCO VCS970A64

- Fibre Optical PLC Splicer VIVANCO VCS970A64: Fibre Optical PLC Splicer, 1:64 (SC/FC/ST).

Feature & Benefits

- Low PDL.

- Low Loss.

- Good Directivity.

- Good Environmental Stability.

Application

- Optical Fiber Communication systems.

- Optical Fiber CATV.

- Fiber to the home (FTTH).

- Passive Optical Network (PON).

- Optical Amplifiers.

- Optical Access Networks/LAN.

- Monitoring Systems.

- Optical Fiber Sensor.

Structure

- Type: PLC Splicer.

- Material: Plastic.

- Adapter Connector: SC/APC, LC/APC.

- Network Connection: EPON/GPON.

- Fiber type: G657.

Optical Performance

- Working Wavelength: 1260-1610nm.

- Insertion Loss: ≤21.5dB.

- Polarization Loss: ≤0.3dB.

- Uniformity: ≤2.0dB.

- Return Loss: ≥55dB.

- Directivity: 55dB.

-Operating Temperature: -45~85℃.

Không có đánh giá nào cho sản phẩm này.

Viết đánh giá

Tên bạn

Đánh giá của bạn

Lưu ý: HTML is not translated!

Thứ hạng Xấu Tốt

Fibre Optical PLC Splicer VIVANCO VCS970A64

Thương hiệu: VIVANCO
Mã số sản phẩm: VCS970A64
Tình trạng kho: Liên hệ

Đơn giá chưa VAT. Phải cộng thuế VAT khi mua hàng

Xin liên hệ
0 đ
