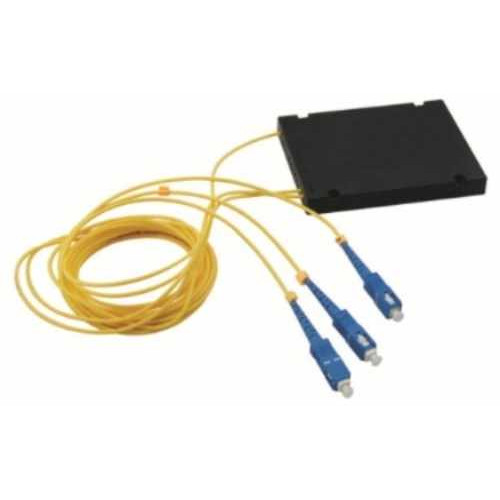

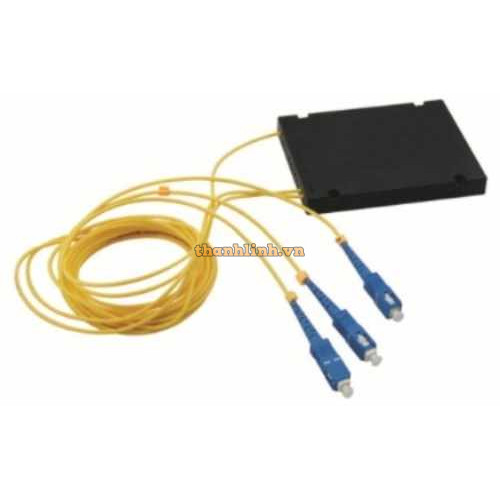

Fibre Optical PLC Splicer VIVANCO VCS970A32
- Fibre Optical PLC Splicer VIVANCO VCS970A32: Fibre Optical PLC Splicer, 1:32 (SC/FC/ST).
Feature & Benefits
- Low PDL.
- Low Loss.
- Good Directivity.
- Good Environmental Stability.
Application
- Optical Fiber Communication systems.
- Optical Fiber CATV.
- Fiber to the home (FTTH).
- Passive Optical Network (PON).
- Optical Amplifiers.
- Optical Access Networks/LAN.
- Monitoring Systems.
- Optical Fiber Sensor.
Structure
- Type: PLC Splicer.
- Material: Plastic.
- Adapter Connector: SC/APC, LC/APC.
- Network Connection: EPON/GPON.
- Fiber type: G657.
Optical Performance
- Working Wavelength: 1260-1610nm.
- Insertion Loss: ≤17.2dB.
- Polarization Loss: ≤0.3dB.
- Uniformity: ≤1.6dB.
- Return Loss: ≥55dB.
- Directivity: 55dB.
-Operating Temperature: -45~85℃.
Fibre Optical PLC Splicer VIVANCO VCS970A32
- Thương hiệu: VIVANCO
- Mã số sản phẩm: VCS970A32
- Tình trạng kho: Xin liên hệ
-
Xin liên hệ
