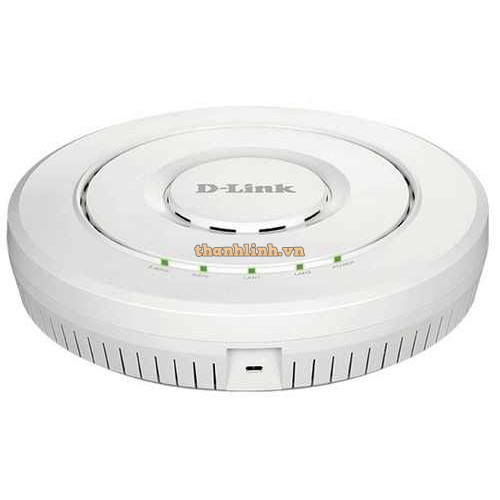

Unified AX3600 Dual Band PoE Access Point D-Link DWL-X8630AP

- Dual-band wireless speeds offer an unparalleled 3600 Mbps throughput

- Wi-Fi 6 ready: delivers greater network efficiency and lower latency, with nearly four times the capacity of previous Wi-Fi standards

- 4 x 4 MU-MIMO slices through congestion, reducing wait time for all users

- Support for Power of Ethernet 802.3at means less wires, for cleaner and easier deployment

- Coverage is shared more efficiently over more users with Airtime Fairness

- Band Steering intelligently manages users, pushing them onto the higher radio frequency when possible

- With 802.11k support, devices pre-detect neighboring APs, switching seamlessly when roaming

- Quality of Service prioritizes time-sensitive data such as video calls or streaming, for less interruptions

- Stay secure with the latest 128-bit Personal or 192-bit Enterprise wireless encryption

- Zero-Wait DFS preemptively seeks quieter frequency channels, reducing external interference

Specifications

Model DWL-X8630AP

General

Hardware Version A1

Wireless Interface IEEE 802.11a/b/g/n/ac/ax (WiFi 6)

Ethernet Interface 1 x 10/100/1000 BASE-T LAN port

1 x 10/100/1000/2500 BASE-T LAN port

Console Port RJ45

MIMO 4 x 4

Data Rate 2.4 GHz - Up to 1147 Mbps (1024QAM)

5 GHz - Up to 2402 Mbps (1024QAM)

Antenna Internal omni-directional antennas

2.4 GHz: 3 dBi

5 GHz: 4 dBi

Operating Frequency 2400 to 2483.5 MHz

5150 to 5850 MHz

Operating Channels 1 to 13 channels for 2.4 GHz band (per country code)

36 to 165 channels for 5 GHz band (per country code)

System Management Web-based user interface (HTTP/HTTPs)

Command-Line Interface (CLI)

Telnet/SSH

Functionality

Advanced Features Auto Channel selection

802.1p Quality of Service (QoS)

Wireless Multimedia (WMM)

Wireless Distribution System (WDS)

Band steering

Airtime Fairness

Link Aggregation

IEEE 802.11kvr Fast Roaming

Management

Operating Mode Standalone mode

Managed mode - Centrally managed by D-Link Wireless Controller

Management Interfaces Web-based User Interface (Web UI)

Telnet/SSH

Command Line Interface (CLI)

SNMP v1/v2c/v3
