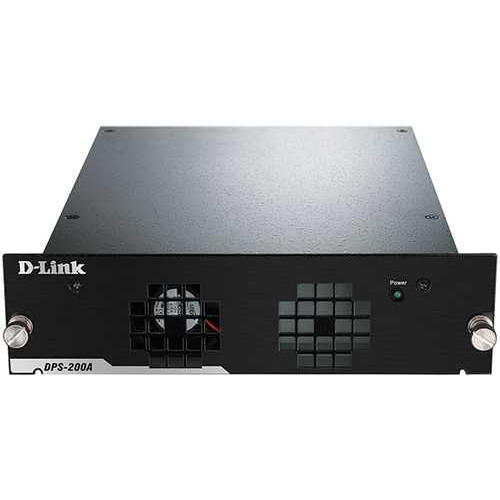

Power Supply AC Redundant D-Link DPS-200A/E

-AC Redundant Power Supply for DGS-3000 Series, DGS-3120-24TC, DGS-3120-24SC.

-The DPS-200A/E redundant power supply (RPS) are designed to conform to the wattage requirements of D-Link’s Ethernet and Gigabit switches.

-It is an external RPS unit enclosed in solid metal cases with sockets to connect to an AC power sources on one end and to connect to a switch’s internal power supply on the other end.

-It provides a low-cost, simple solution to the problem of an inadvertent failure of the internal power-supply of an Ethernet switch, which can result in the shutdown of that switch, the devices attached to its ports or an entire network.

-Supporting full output power for the switch, these redundant power supplies can maximise the power availability of the switching device.

Redundant Power Backup

-The DPS-200A/E is equipped with an integrated detection circuit that continuously monitors the switch’s internal power supply.

-In the event of a power interruption, the redundant power supply is immediately triggered so that the LAN switch and its connected devices can continue providing service.

-This results in a more reliable network infrastructure and protects the network from going down due to failure of a single network device power supply.

Easy and Flexible Deployment

-Deployment of the DPS-200A/E does not require any change in the configuration of the LAN switch.

-The DPS-200A/E is equipped with a universal internal power supply and can be connected to any AC power source from 90 V AC to 264 V AC, 47 Hz to 63 Hz through a standard AC power cable.

Modular Redundant Power Supplies

-The DPS-200A/E is a modular redundant power supply which can be installed as independent power supply units or placed inside a DPS-800 Rack-mount chassis.

-The chassis are designed for mounting in a standard 19-inch equipment rack.

-Multiple power supplies can be placed inside a chassis, from which they can connect to the switches mounted in the same rack.

Compatible Products

-DGS-3000-10TC1.

-DGS-3120-24TC.

-DGS-3120-24SC.

-DWS-3160-24TC.

Technical Specifications

Power Supply Type Single Redundant Power Supply

Interface 60w Single Redundant power supply

Input Voltage 90 to 264 V AC

Power Capacity 60 watt

MTBF 400.000 h

Dimensions 172 x 257 x 43 mm

Weight 2 Kg
