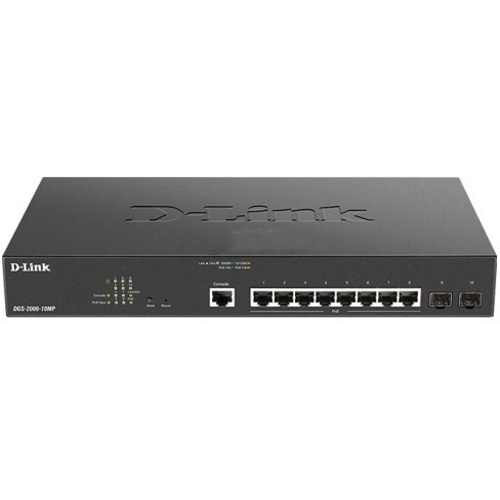

8-port Gigabit Ethernet + 2-Port Gigabit SFP PoE Switch D-Link DGS-2000-10MP

- 10-port Gigabit Layer 2 Managed PoE (130W) Switch with 2-port Gigabit Combo Uplinks.

- 8 x 10/100/1000BASE-T 802.3af/802.3at PoE, 2 x 100/1000Mbps SFP (Port 1-8 Up-to 30W).

- MAC Address 8K.

- Managed Layer: 2.

- Power Budget: 130W.

Đặc tính kỹ thuật

Hardware Version A1

Interface

Size 19-inch standard rack-mount width

1U height

Interfaces • 8 x 10/100/1000BASE-T PoE ports

• 2 x 100/1000 Mbps SFP ports

Port Standards & Functions Ports 1 to 8 compliant with IEEE 802.3at

Console Port RJ-45 Connector

Other Port Standards & Functions • IEEE 802.3i 10BASE-T Ethernet (twisted-pair copper)

• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)

• Auto-negotiation

• IEEE 802.3x Flow Control

• IEEE 802.3z 1000BASE-X Gigabit Fiber

Network Cables • UTP Cat. 5, Cat. 5e (100 m max.)

Full/Half-Duplex • Full/half-duplex for 10/100 Mbps speeds

• Full-duplex for 1000 Mbps speed

Media Interface Exchange • Auto MDI/MDIX adjustment for all twisted-pair ports

Performance

Switching Capacity • 20 Gbps

Forwarding Method Store-and-forward

MAC Address Table Size • 8K entries

MAC Address Update • Up to 256 static MAC entries

64-byte Max. Forwarding Rate • 14.88 Mpps

CPU Memory • 256 MB DDR3

Packet Buffer • 4.1 Mbits

Flash Memory • 32 MB

Physical/Environmental

MTBF • 1,274,005 hours

Acoustic • 0 dB(A)

Heat Dissipation • 519.51 BTU/hr

Power Input • AC Input: 100 to 240 V AC, 50/60 Hz internal universal power supply

Maximum Power Consumption • 152.3 W (PoE on)

• 9.4 W (PoE off)

Maximum PoE Budget 130 W

Standby Power Consumption • 4.3 W/100 V

• 5.2 W/240 V

Dimensions (W x D x H) 330 x 180 x 44 mm
