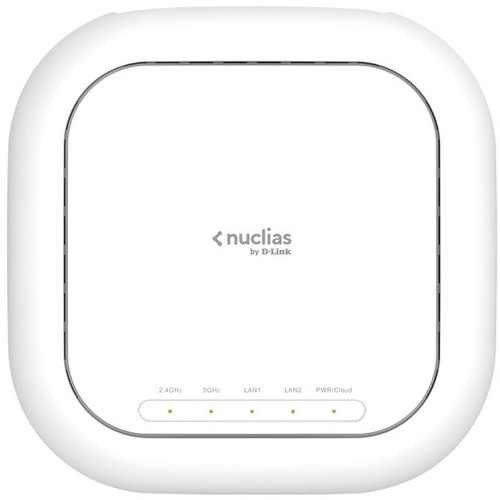

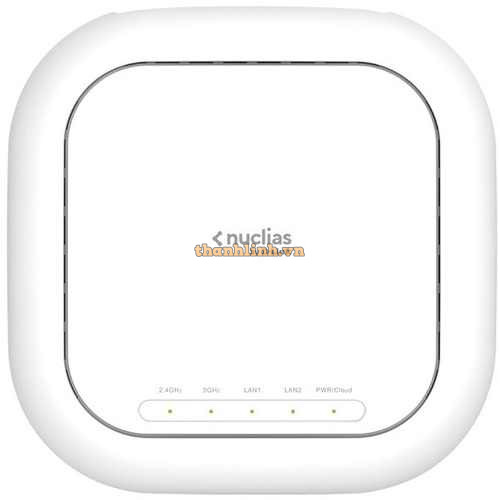

Nuclias Cloud-Managed AX3600 Access Point D-Link DBA-X2830P

- Centralized cloud-based management, with intuitive web and app-based interface.

- Wi-Fi 6 ready: delivers greater network efficiency and lower latency, with nearly four times the capacity of previous Wi-Fi standards.

- 4 x 4 MU-MIMO slices through congestion, reducing wait time for all users.

- Superior throughput with dual-band transfer speeds of up to 1147 Mbps in the 2.4 GHz band and 2402 Mbps in the 5 GHz band.

- Coverage is shared more efficiently over more users with Airtime Fairness.

- Band Steering intelligently manages users, pushing them onto the higher radio frequency when possible.

- Two LAN ports capable of Link Aggregation offer 3.5 Gbps of backhaul up to the wired network, eliminating bottlenecks at the AP.

- Support for Power over Ethernet 802.3at means less wires, for cleaner and easier deployment.

- With Zero Touch Deployment, swift plug and play installation eliminates the need for on-site setup.

- Supports WPA3™ - the latest Wi-Fi encryption standard for even more protection.

- PoE Injector and Power Adapter are not included.

Specifications

Model DBA-X2830P

General

Interface IEEE 802.11ax Wi-Fi 6

IEEE 802.11a/b/g/n/ac Wave 2 wireless

1 x 10/100/1000/2500 Mbps Ethernet Port

1 x 10/100/1000 Mbps Ethernet Port

1 x RJ45 Console port

Standards IEEE 802.11a/b/n/g/ac/ax

IEEE 802.3az Energy-Efficient Ethernet (EEE)

IEEE 802.3at Power over Ethernet (PoE)

IEEE 802.3i/u/ab

IEEE 802.3x Flow Control

LEDs Power/Cloud, 2.4 GHz, 5 GHz, LAN 1 (PoE), LAN 2

Data Signal Rate 2.4 GHz: Up to 1147 Mbps

5 GHz: Up to 2402 Mbps

Antenna 4 x 4 Internal omni-directional antennas

(2.4 GHz: 3 dBi, 5 GHz: 4 dBi)

Maximum Output Power 2.4 GHz: 29 dBm

5 GHz: 28 dBm

Functionality

Security WPA2/WPA3 Personal/Enterprise

MAC address filtering

RADIUS server authentication

SSID isolation

Guest isolation

Captive portal

Station isolation

Maximum SSIDs Supports up to 16 SSIDs per device - Up to 8 SSIDs per wireless band

Physical

Power Input IEEE 802.3at Power over Ethernet (PoE)

Power Adapter : 12V/ 2.5A
