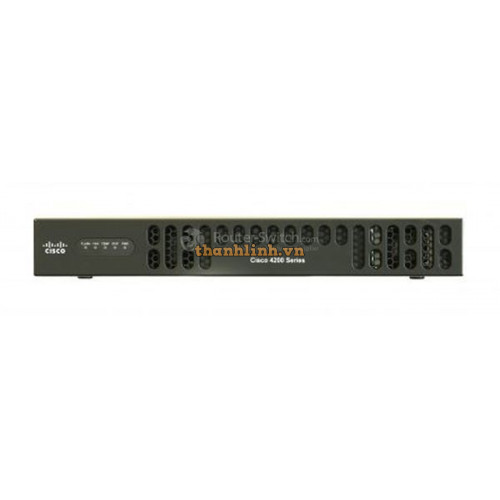

Router Integrated ISR 4221 Cisco ISR4221/K9

- Cisco ISR 4221 (2GE, 2NIM, 4G FLASH, 4G DRAM, IPB).

- Cisco 4221 Integrated Services router is design to deliver advanced services to the small enterprise branch environment.

- Cisco ISR 4221 delivers 35Mbps thoughtput by default. With pay-as-you-grow performance, you can increase forwarding capacity to 75Mbps by buying licenses.

Specifications

Product Code Cisco ISR4221/K9

Aggregate Throughput 35 Mbps to 75 Mbps

Total onboard WAN or LAN 10/100/1000 ports 2

RJ-45-based ports 2

SFP-based ports 1

NIM slots 2

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) 4 GB

Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) 4 GB

Default flash memory 8 GB

Maximum flash memory 8 GB

External USB 2.0 slots (type A) 1

Serial console port - RJ45 (up to 115.2 kbps) 1 (combo CON/AUX port)

Serial auxiliary port - RJ45 (up to 115.2 kbps) 1 (combo CON/AUX port)

Power-supply options External: AC Only

AC input voltage 100 to 240 VAC autoranging

AC input frequency 47 to 63 Hz

AC input current range, AC power supply (maximum) 1.5 to 0.6A

AC input surge current 90 A peak and less than 3 Arms per half cycle

Typical power (no modules) (watts) 24

Maximum power with AC power supply (watts) 90

Dimensions (metric) 43.7 x 322.6 x 254 mm

Rack-mount 19in. (48.3 cm) EIA Optional

- Bảo hành: 12 tháng.
