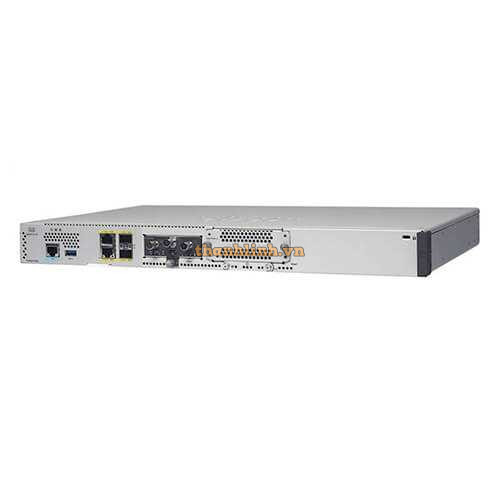

Catalyst 8200 Series Edge Platform Router CISCO C8200L-1N-4T

- Multicore processors: Intel x86 CPU with 4GB DRAM memory default.

- Embedded IPsec VPN hardware acceleration:

+ Enables up to 500 Mbps IPsec traffic;

+ Increases scalability for IPsec throughput requirements;

+ SSL and crypto hardware acceleration.

- Integrated Gigabit Ethernet ports:

+ Provides four built-in Ethernet WAN ports;

+ Two Ethernet ports are Small Form-Factor Pluggable (SFP) and two are RJ45 ports, enabling fiber as well as copper connectivity.

- Flash memory support: Both models have an integrated onboard 8-GB flash which is not upgradable. M.2 storage provides flash upgrade options.

- M.2 storage: The C8200L-1N-4T does not ship with a default M.2 storage but can be upgraded to 16G, 32G USB and 600G M.2 Non-Volatile Memory Express (NVMe) Storage.

- Power supply:

+ Both models use an internal, fixed AC power supply;

+ Power over Ethernet (PoE) is available as an option;

+ PoE ports added in the Network Interface Module (NIM) slot will require an additional external PoE power supply.

- Modularity and form factor:

+ 1-Rack Unit (1RU) form factor;

+ Supports NIM and Pluggable Interface Module (PIM) slots.

- Integrated security: Hardware-anchored Secure Boot and Secure Unique Device Identification (SUDI) support for Plug and Play to verify the identity of the hardware and software.

Thông số kỹ thuật

Platform specifications

C8200L 1RU w/ 1 NIM slot and 4x 1 Gigabit Ethernet WAN ports 1G port density: 4

Slots: 1 NIM, 1 PIM

Memory (DRAM) default: 4 GB

Storage (M.2 SSD) default: No

Platform performance

SD-WAN IPsec throughput (1400 bytes) (SD-WAN) Up to 500 Mbps

SD-WAN IPsec throughput (IMIX) (SD-WAN) 400 Mbps

SD-WAN overlay tunnels scale (SD-WAN) 1500

IPv4 forwarding throughput (1400 bytes) (non SD-WAN) Up to 3.8 Gbps

IPsec throughput (1400 bytes) (non SD-WAN) Up to 500 Mbps

Number of IPsec Static Virtual Tunnel Interface (SVTI) tunnels (non SD-WAN) 1500

Number of Access Control Lists (ACLs) per system (non SD-WAN) 4000

Number of IPv4 Access Control Entries (ACEs) per system (non SD-WAN) 72,000
