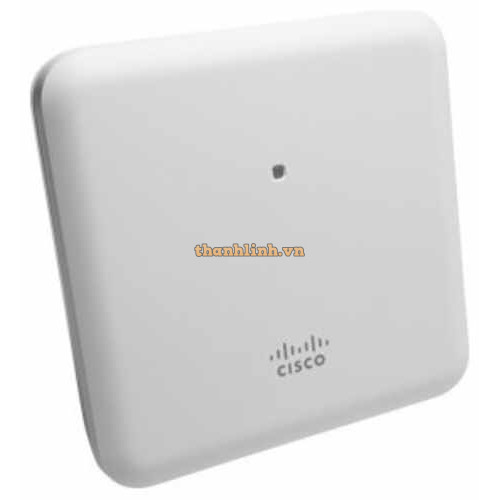

Cisco Aironet AIR-AP2802I-S-K9

- Cisco Aironet AIR-AP2802I-S-K9 is one of the Cisco Aironet 2800 Series Access Points, supports 802.11ac W2 AP w/CA; 4x4:3; Int Ant; 2xGbE S Domain.

- This 2800 series, delivering new 802.11ac Wave 2 standard, is ideal for large enterprise organizations that rely on Wi-Fi to engage with customers.

- The Series is a hands-off product that’s intelligent enough to make decisions based on end-device activities and usage.

- AIR-AP2802I-S-K9 provides internal antenna and S regulatory domain.

Specifications

Product Code AIR-AP2802I-S-K9

Software Cisco Unified Wireless Network Software Release 8.2.111.0 or later

Cisco IOS®XE Software Release 16.3

Supported wireless LAN controllers Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst®6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller

Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches

Cisco Mobility Express

802.11n version 2.0 (and related) capabilities 4x4 MIMO with three spatial streams

Maximal ratio combining (MRC)

802.11n and 802.11a/g beamforming

20- and 40-MHz channels

PHY data rates up to 450 Mbps (40 MHz with 5 GHz)

Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

802.11 dynamic frequency selection (DFS)

Cyclic shift diversity (CSD) support

802.11ac Wave 1 capabilities 4x4 MIMO with three spatial streams

MRC

802.11ac beamforming

20-, 40-, and 80-MHz channels

PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)

Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

802.11 DFS

CSD support

802.11ac Wave 2 capabilities 4x4 MU-MIMO with three spatial streams

MRC

802.11ac beamforming

20-, 40-, 80, 160-MHz channels

PHY data rates up to 5.2 Gbps

Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)

802.11 DFS

CSD support

Integrated antenna Flexible radio (either 2.4 GHz or 5 GHz)

2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth

5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90°

Dedicated 5-GHz radio

5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth

External antenna (sold separately) 2802e Series access points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)

Smart antenna connector Available on the 2802e Series access points only

Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access point

Required when running the flexible radio as either a second 5-GHz serving radio or Wireless Security Monitoring radio

Interfaces 2x100/1000BASE-T autosensing (RJ-45)

Management console port (RJ-45)

USB 2.0 (enabled via future software)

Indicators Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H) Access point (without mounting brackets): 8.66” x 8.68” x 2.17”

Weight 3.53 lb (1.6 kg)

Input power requirements 802.3at PoE+, Cisco Universal PoE (Cisco UPOE®)

802.3at power injector (AIR-PWRINJ6=)

- Bảo hành: 12 tháng.
