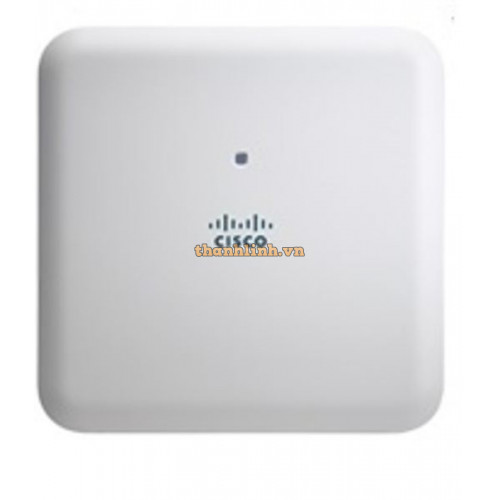

Cisco Aironet CISCO AIR-AP1832I-S-K9

- Cisco Aironet AIR-AP1832I-S-K9 support 802.11ac Wave 2; 3x3:2SS; Int Ant; S Reg Domain.

- AIR-AP1832I-S-K9 is one of the Cisco Aironet 1830 Series Access Points.

- Cisco 1830 AP series is ideal for small and medium-sized networks. This series supports the latest Wi-Fi standard, the 802.11ac Wave 2 standard.

- The 1830 Series extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support.

- The model AIR-AP1832I-S-K9 provides S Regulatory Domain and internal antennas.

Specifications

Part Number AIR-AP1832I-S-K9

Description 802.11ac Wave 2 AP, 3x3:2, Internal Antenna, S Regulatory Domain

Software Cisco Unified Wireless Network Software Release with AireOS wireless controllers: 8.1.121.0 or later for the Cisco Aironet 1830 Series Access Points

Deployment modes Centralized, standalone, sniffer, Cisco FlexConnect™, monitor, OfficeExtend, mesh

Supported wireless LAN controllers Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Cisco Catalyst®6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco 5520 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco 8540 Series Wireless Controllers, Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3650 and 3850 Series Switches with integrated controller, Cisco Mobility Express

Regulatory Domain S (S regulatory domain):

- 2.412 to 2.472 GHz; 13 channels

- 5.180 to 5.320 GHz; 8 channels

- 5.500 to 5.700 GHz; 11 channels

- 5.745 to 5.825 GHz; 5 channels

Integrated antenna 2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360°

5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360°

Interfaces 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE), Management console port (RJ-45), USB 2.0 (enabled via future software)

Indicators Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions

(W x L x H) Access point (without mounting bracket): 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)

Weight 3.12 lb (1.41 kg)

Environmental Cisco Aironet 1830i

Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

Nonoperating (storage) altitude test: 25˚C, 15,000 ft.

Operating temperature: 32° to 104°F (0° to 40°C)

Operating humidity: 10% to 90% (noncondensing)

Operating altitude test: 40˚C, 9843 ft

System memory 1 GB DRAM

256 MB flash

Input power requirements AP1830: 44 to 57 VDC

Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz

Power draw 15.4W

- Bảo hành: 12 tháng.
