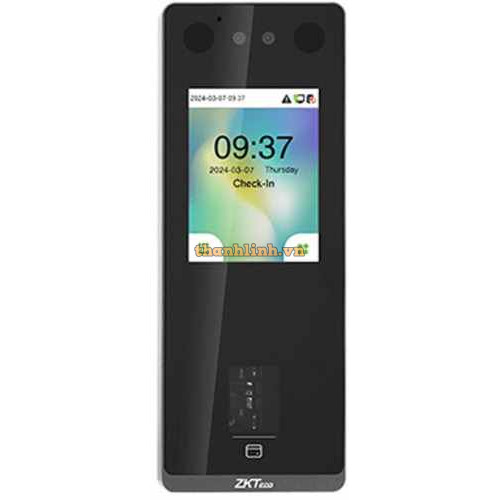

Mã sản phẩm SenseFace 3A

Display 2.8″ @ TFT Color Touch LED Screen (240*320)

Camera WDR Binocular Camera @ 1MP

Operation System Linux

Hardware CPU: Dual Core@1GHz

RAM: 512MB; ROM: 8GB

Speaker: 8ohm @1W

Microphone: *1 (Sensitivity: -42 dB/ Omni-directional/ Signal-to-Noise Ratio: 58 dB/

Impedance: 2.2kΩ)

Supplement Light: No

Fingerprint Sensor: In-Glass Fingerprint (Z-ID)

Authentication method Face / Card / Password (Virtual Keypad)

Fingerprint Template Capacity NA

Face Template Capacity 3,000 (1:N) (Standard)

Card Capacity 6,000 (1:N) (Standard)

User Capacity 6,000 (1:N) (Standard)

Transaction Capacity 150,000 (1:N)

Max. User Password Length 8 Digits

Biometric Authentication Speed less than 0.35 sec (Facial Authentication)

Touchless Biometric Authentication

Distance 30cm to 200cm (Facial Authentication)

False Acceptance Rate (FAR) % FAR ≤ 0.01% (Visible Light Facial Authentication)

False Rejection Rate (FRR) % FRR ≤ 0.02% ( Visible Light Facial Authentication)

Biometric Algorithm ZKFace V4.0

Card Type ID Card@125 kHz (Standard)

IC Card@13.56 MHz (Optional)

Communication TCP/IP*1

Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional)

Wiegand (Input or Output)*1

RS485: ZKTeco RS485*1

Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, 12V Output*1

Standard Functions ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple AuthenticationMethods, SIP Client (Version 2.0),ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A),AC Push and TA Push Protocol Switch Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input)

Optional Functions IC Card, Wi-Fi, Wireless Doorbell

Access Control Interface RS485 (RS485 Card Reader / Biometric Reader)

Power Supply DC 12V 3A

Operating Temperature -5°C to 45°C

Operating Humidity 10% to 90% RH (Non-condensing)

Dimensions 166 mm * 63 mm * 25 mm (L*W*H)

Net Weight 0.185 Kg

Supported Software Software: ZKBio CVAccess / ZKBioTime

Mobile App.: ZKBio Zlink / ZSmart

Cloud Service: ZKBio Zlink

Installation Wall-mount (Compatible with Asian Gang Box / Single Gang Box

Ingress Protection Rating IP65 (waterproof and dustproof )

Certifications ISO14001, ISO9001,CE, FCC, RoHS
