Thông số kỹ thuật:

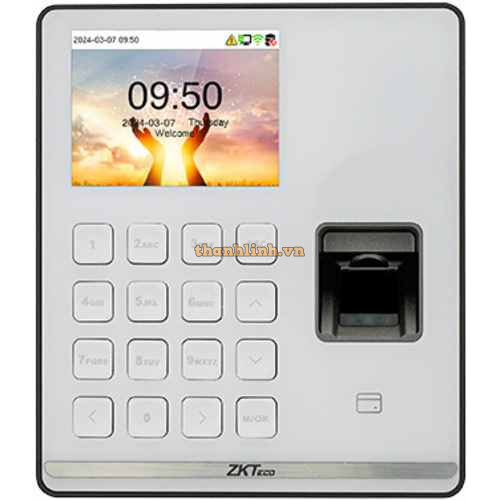

Model M1

Display 2.8″@ TFT Color LCD Screen (320*240)

Operation System Linux

Hardware

RAM: 8MB; ROM: 16MB

Speaker: 8ohm @1W

Physical Keypad: 16 Keys

Fingerprint Sensor: ZK Optical Sensor

Casing Color: Black and White

Authentication method Fingerprint / Card / Password (Physical Keypad)

Fingerprint Capacity 500 (1:N) (Standard)

Card Capacity 500 (1:N) (Standard)

User Capacity 500 (1:N) (Standard)

Transaction Capacity 100,000 (1:N) (Standard)

Max. User Password Length 6 Digits

Biometric Authentication Speed less than 1.5 sec (Fingerprint)

False Acceptance Rate (FAR) % FAR < 0.0001% (Fingerprint)

False Rejection Rate (FRR) % FRR <0.1% (Fingerprint)

Biometric Algorithm ZKFingerprint V13.0

Card Type

ID Card@125 kHz (Standard)

IC Card@13.56 MHz (Optional)

Communication

Wi-Fi (IEEE802.11b/g/n) @ 2.4 GHz

USB: Type A*1 (to import data for a firmware upgrade only)

Standard Functions

DST, Up to 14-digit User ID, Record Query, Automatic Status Switch, Multiple Authentication Methods, T9 Keyboard (Input), Online Firmware Upgrade

Optional Functions IC Card

Power Supply DC 5V 2A

Operating Temperature 0°C to 45°C

Operating Humidity 20% to 80% RH (Non-condensing)

Dimensions 135.5 mm * 118.23 mm * 35.95 mm (L*W*H)

Gross Weight 0.245 Kg

Net Weight 0.485 Kg

Supported Software

Mobile App: ZKBio Zlink

Cloud-based Software: ZKBio Zlink

Installation Wall-mount (Compatible with Asian Gang-box / Single Gang-Box)

Certifications ISO14001, ISO9001, CE, FCC, RoHS
