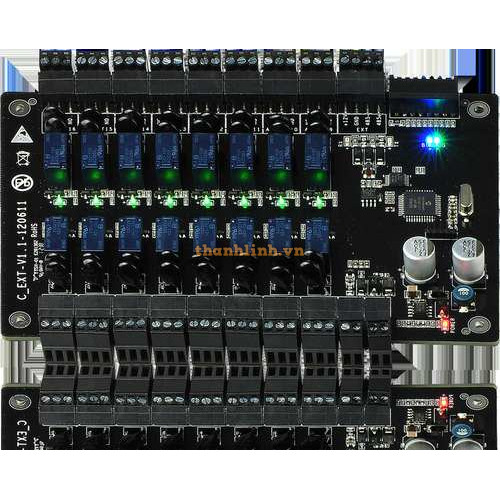

Bảng mở rộng phân tầng thang máy ZKTeco EX16

- Số tầng điều khiển: 16 tầng.

- Cổng giao tiếp: RS485.

- Nguồn điện cung cấp: 12VDC/ 1A.

- Bảng mở rộng phân tầng thang máy EX16 dùng kết hợp với bảng điều khiển phân tầng thang máy EC10.

Features

- Designing specifically for elevator control, the EX16 floor extension boards provide customers with the most secured, scalable, versatile and affordable access control solutions available today.

- Floor access can be restricted based on various user credentials, including fingerprint,

proximity card and/or password.

- Pre-defined time schedules can also be used to control floor access. During normal visits/business hours, unrestricted floor access can also be permitted (aka Passage mode).

- The EX16 Elevator Floor Extension Board restricts access up to an additional sixteen floors.

- Each EC10 can support up to three EX16 boards. When combining together, a total fifty eight (58) floors can be controlled with a single EC10 bundle. Note EC10 panels can be daisy-chained together to control as many floors as desired.

- Our powerful yet easy to use software makes the Elevator Control System very easy to manage.

Đặc tính kỹ thuật

Model EX16

Floor Button Control Relay 16

Communication to EC10 RS485

RS485 address Set by DIP switch

Power Supply 12VDC, 1A

Dimension 160 x 106mm

Weight 0.2kg

- Bảo hành: 12 tháng.
