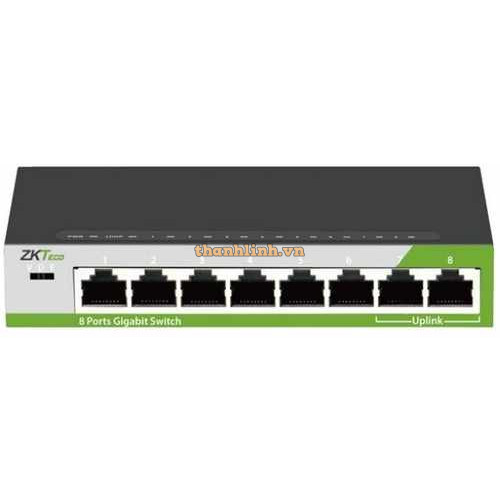

8-Port 10/100/1000Mbps Smart Ethernet Switch ZKTeco E062-16-G

- 8 Gigabit RJ45 ports (2 Uplink Ports) (10/100/1000 Mbps self-adaptation)

- Conforms to IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x

- Support RJ45 Auto-MDI/MDIX

- With panel indicator for monitoring status and failure analysis

- Support dialing VLAN, Default and Extend Mode

- Support Loop alarm function

- With Port 1 to 2 for QoS data priority

Specifications

Model E062-16-G

Network Parameters

Port Type 8*10/100/1000M RJ-45

Switching Capacity 16Gbps

Packet Forwarding Rate 11.9Mpps

Internal Cache 2.5M

MAC Address Table 1K

Jumbo Frames 2Kbytes

Forwarding Mode Store-and-Forward switching

Mean Time Between Failure (MTBF) 100000 hours

Standards

Network Protocol IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x

Network Cable 10Base-T: Cat3/Cat4/Cat5/Cat5e UTP/STP(≤100m)

100Base-TX : Cat5/Cat5e UTP/STP(≤100m)

1000Base-TX : Cat5/Cat5e UTP/STP(≤100m)

Working Mode

VLAN (Port Isolation) Ports 1 to 6 in isolation group cannot communicate with each other

Default (Standard Mode) Support loop alarm

Extend (Link Extension) Ports 1 to 6 support the work on 10/100/1000 Mbps speed based on their connection to the other end, and still reach up to 250 m transmission on 10Mbps

General

Switch input voltage Input DC 5V1A

Operating Temperature -10~50°C

Storage Temperature -40~70°C

Operating Humidity 10%~90%, non-condensing

Storage Humidity 5%~90%, non-condensing

Dimensions (L*W*H) 137*77*25 (mm)

Net Weight 0.3kg

- Bảo hành: 12 tháng.
