Motion Tolerance (handheld): Up to 20 in. / 51 cm per second for 13 mil UPC in optimized mode

Light Source: Aiming Pattern: circular 525nm true green LED

Illumination: warm white LED

Imager Field of View: 45° H x 34° V nominal

Image Sensor: 1280 x 960 pixels

Minimum Print Contrast: 20% Minimum Reflective Distance

Skew Tolerance: +/- 60°

Pitch Tolerance: +/- 60°

Roll Tolerance: 0° – 360°

Minimum Element Resolution: Code 39 – 5.0 mil

Bluetooth Radio: Standard Bluetooth Version 5.0 with BLE: Class 1 330ft. (100m) and Class 2 33ft. (10m), Serial Port and HID Profiles

Adjustable Bluetooth Power: Output power adjustable down to negative 10 dBm in 8 steps

MFi MFi Certified (specific configuration required)

1D: Base 32 (Italian Pharma), Codabar/NW7, Code 11, Code 39, Code 93, Code 128, GS1 DataBar, I 2 of 5, Korean 3 of 5, MSI Plessey, UPC/EAN

2D: Aztec, Composite Codes, DataMatrix, Dotted DataMatrix, Dotcode, Han Xin, MaxiCode, PDF417, Micro PDF417, Postal Codes, QR Code, Micro QR, TLC-39, SecurPharm

OCR: OCR-A, OCR-B, MICR, US Currency

Dimensions: Scanner

0.9 in. H x 1.8 in. W x 4.3 in. D

2.3 cm H x 4.6 cm W x 10.9 cm D

Presentation Cradle

3.5 in. H x 2.1 in. W x 2.4 in. D

9.0 cm H x 5.3 cm W x 6.1 cm D

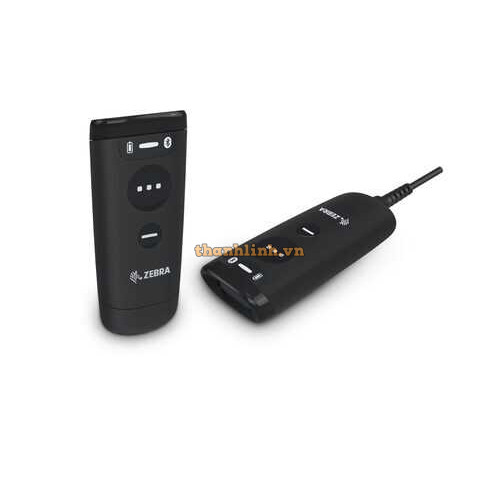

Weight: Corded CS60-HC: 2.0 oz. / 58.0 g

Cordless CS60-HC: 3.1 oz. / 87.0 g

Presentation Cradle: 3.4 oz. / 96.0 g
