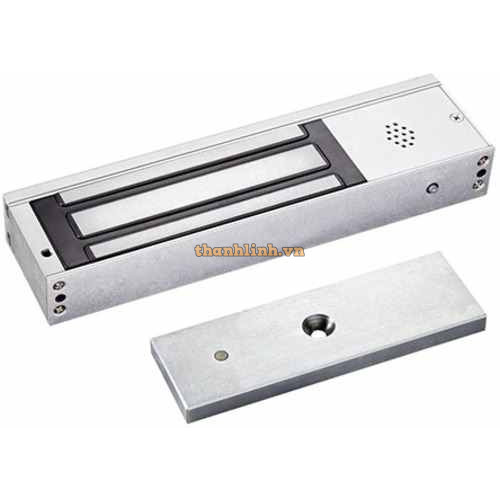

Khóa điện một cửa YM-500BZ có tiếng chuông. Các loại cửa khác nhau có thể khớp với nó. Khi thiết lập 1-30 khi cửa đóng, nếu cửa không đóng lại sau 30 giây, nó sẽ báo động cho đến khi cửa đóng

Thông số kỹ thuật:

Product Parameter Parameter Description

Size 282Lx74.8Wx38.8H(mm)

Armature plate 185Lx60Wx13.2H(mm)

Holding Force 500kg(1200Lbs)

Voltage DC12V (Adjustable DC24V)

Current Draw 12V/420mA(±10%);24V/210mA(±10%)

Signal Output Dry Contact,Max Rating of Contact Current 3A

LED Red indicates the door is unlocked,Green indicates the door is locked

Buzzer 5/10/20/30sec

Suitable for Wooden door , Glass door ,Metal door , Fireproof door

Surface Temp ≤+20℃

Operating Temp -20℃~+55℃(-4—131°F)

Humidity 0~90%(non-condensing)

Finishes for Shell Anodized aluminum

Finishes for Magnetic Zinc

Finishes for Armature Zinc

Weight 4.5kg

Đặc tính nổi bật:

Collinear Load Test 500kg,1200pounds.

Dual Voltage 12 or 24 VDC(optional).

The Standard Voltage is 12VDC when Finished.

MOV Provides Reverse Current Protection.

Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.

LED Indicates the Door Status.

Lock Status sensor(NO/NC/COM).

Time: 0/3/6/9sec.

Anti-Residual Magnetism Designed.

High Strength Material,Anodized Aluminum Housing.

Design without Mechanical Failure.

Increase the holding Force,Dual Insulative Housing.

CE Certificate by European Union,MA Certificate by China Public Security Office
