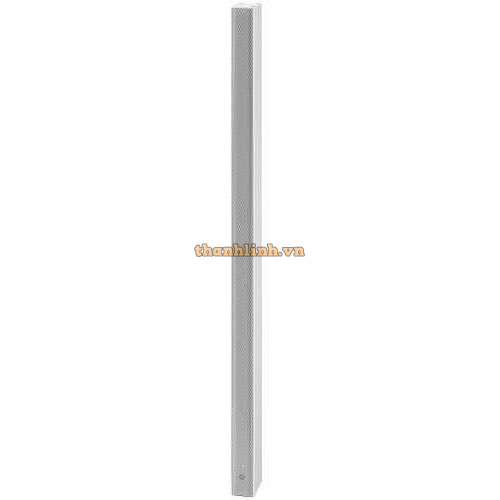

Yamaha VXL1 Specs

Speaker Type

Full-Range, Powered Speaker, Bass Reflex

Frequency Response

80 Hz to 20 kHz

Nominal Coverage Angle

H: 170°

V: 25° (+12.5 to -12.5°)

Effective Coverage

H: 180°

V: 30° (+15 to -15°)

Components

16 x 1.5" / 3.75 cm Cone

Maximum Output Level

102 dB SPL, when Using PoE+(IEEE 802.3at)

Power Rating

Dynamic: 15 W, PoE+ (IEEE 802.3 at), 6 W, PoE (IEEE 802.3 af)

Continuous: 15 W (PoE+, IEEE 802.3 at), 6 W, PoE (IEEE 802.3 af)

I/O Connector

1 x RJ45 (Dante)

Protection Circuits

Speaker Processing: Clip Limiting, Integral Power Protection

Amplifier Protection: Overcurrent Protection, Over-Temperature Protection, Undervoltage Lock Out, DC Detection, Clock Detection

Power Supply Protection: Overload Protection, Overvoltage Protection, Undervoltage Lock Out

Cooling

Natural Convection

Power Requirements

PoE+ (IEEE 802.3at), PoE (IEEE 802.3af)

Power Consumption

Idle: 3 W with 1/8 (Pink Noise), 6 W with PoE+(IEEE 802.3at), 4.3 W with PoE(IEEE 802.3af)

Finish and Grille Color

Black Painting (Approximate Value: Munsell N3.0)

Magnetic Shielding

No

Dust and Water Resistant

No

Dimensions (W x H x D)

2.1 x 44.1 x 4.1" / 54 x 1120 x 104 mm

Weight

11 lb / 5 kg
