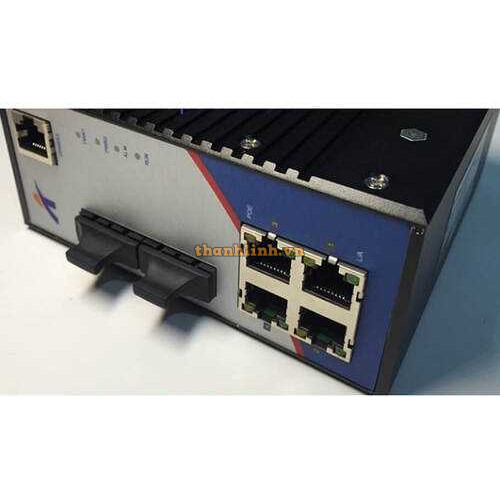

6-port Industrial DIN-Rail PoE Switch WINTOP YT-RS205-2F4T-AT

- Support 4 × 10/100Base-T(X) P.S.E.ports + 2 × 100Base-FX (Single-mode, dual fiber, 20Km, SC) ports, DIN Rail, DC46-75V.

- The electrical port supports10/100Mbps adaptive, both support MDI/MDIX.

- Applicable voltage range 12~75V DC.

- The electrical port supportsIEEE802.3af and IEEE802.3at standard POE power supply.

- Has excellent lightning protection, anti-static and anti-electromagnetic interference capabilities.

- Suitable forworking environment of -40℃~85℃.

Technical parameters

Interface Optical port: 100Mbps (interface type: SC, SFP optional)

Electrical port: 10/100Mbps adaptive, Full/Half duplex mode, support MDI/MDI-X. Transmission distance is 0-100m.

LED indicator: PWR1, PWR2, L/A, SPD, POE

Switch properties Backplane bandwidth: 1.2Gbps

Message buffer size: 1Mb

MAC address table:8K

Jumbo frame: 10K Bytes

Power requirement Input voltage: redundant dual DC (DC12~75V) wide voltage current input, reverse connection protection

Input current: max 2A

Physical properties Shell: metal, IP40 protection

Size: 135x126x44mm

Weight: 650g

Installation method: card rail installation

Working environment Working temperature: -40 ~ 85°C (-40 ~ 185°F)

Storage temperature: -40 ~ 85°C (-40 ~ 185°F)

Ambient relative humidity: 5 ~ 95% (non-condensing)

Industry standards and Certification Electromagnetic Interference (EMI): FCC Part 15/CISPR22 (EN55022): Class A

Electromagnetic susceptibility (EMS):

IEC61000-4-2 (ESD) Level 4, IEC 61000-4-3 (RS) Level 3, IEC 61000-4-4 (EFT) Level 4, IEC 61000-4-5 (Surge) Level 4, IEC 61000- 4-6 (CS) Level 3

Anti-vibration: IEC60068-2-6

Shock resistance: IEC60068-2-27

Free fall: IEC60068-2-32

Note: Please check the latest certification status on the official website of Yuantuo.

MTBF (Mean Time Between Failure)

Time: 500000h

- Bảo hành: 12 tháng.
