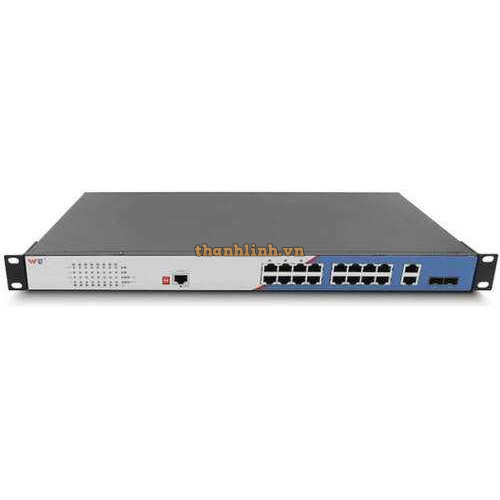

• Thiết bị chuyển mạch PoE Công Nghiệp 16×1000Base-T POE port+uplink 2×1000Base-X SFP slot+2 ×1000Base-T RJ45 port,single power, AC220V Wintop YT-CM6320-2GF18GT-16POE

16-port 10/100/1000BaseT-(X) Industrial DIN-Rail PoE Switch WINTOP YT-CM6320-2GF18GT-16POE

- Hỗ trợ 2 cổng cáp quang Gigabit, 2 cổng cáp đồng RJ45 Gigabit và 16 cổng cáp đồng RJ45 Gigabit hỗ trợ PoE.

- Đạt tiêu chuẩn bảo vệ IP30, vỏ kim loại chịu va đập.

- Dải điện áp hoạt động: AC220V.

- Đáp ứng các yêu cầu về tiêu chuẩn tương thích điện từ EMC (chống sét lan truyền, tĩnh điện, xung, đột biến).

- Hỗ trợ cấu hình nhanh các chức năng mạng qua giao diện dòng lệnh (CLI) và giao diện WEB.

- Hỗ trợ cấu hình Ring (thời gian chuyển mạch <20ms) và bảo vệ mạng vòng STP/RSTP.

- Hỗ trợ quản lý mạng SNMP V1/V2c/V3 và nền tảng quản lý mạng tích hợp WTNMS.

Thông số kỹ thuật

Applicable standards IEEE 802.3 10BaseT IEEE 802.3u 100BaseT

IEEE 802.3ab 1000BaseTX IEEE 802.3z 1000BaseFX

IEEE 802.3af/802.3at POE IEEE 802.3x flow control

IEEE 802.1D STP IEEE 802.1w RSTP

IEEE 802.1p Cos IEEE 802.1Q VLAN

Protocols IGMP Snooping, GMRP, GVRP, SNMPv1/v2c/v3, TFTP, SNTP, RMON, HTTP, SSH, Telnet, Syslog, LLDP, EtherNet/IP, Modbus/TCP

MIB: MIB-II, BRIDGE MIB, Ethernet MIB, IF MIB, RMON MIB

Group 1, 2, 3, 9

Switching features Qos queue: 8

VLAN-ID: 1-4094

Back plane bandwidth: 40Gbps

List of MAC addresses: 8K

Message buffer size: 4 Mb

Port Serial port: RS-232 (port type: RJ45 slot)

Gigabit fiber port: 1000 Mbps (port type: SFP slot)

Gigabit copper port: 10/100/1000 Mbps self-adaptive, Full/Half

duplex mode, MDI/MDI-X supported.

LED indicator: PWR, Link/ACT, RUN, POE

Power source requirement Input voltage: AC220V

Input current Up to 200 mA

Physical properties Enclosure: Metal IP30-rated protection

Size: 440 mm*300 mm*44 mm

Weight: 4380 g

Mounting method: Rack-mounted

Environmental restrictions Working temperature: -20 ~ 75°C (-4 ~ 167°F)

Storage temperature: -40 ~ 85°C (-40 ~ 185°F)

Relative ambient humidity: 5 ~ 95% (non-condensing)

Standards and certification EMI: FCC Part 15/CISPR22 (EN55022): Class A

EMS:

IEC61000-4-2 (ESD) level 3, IEC 61000-4-3 (RS) level 3, IEC61000-4-4(EFT) level 4, IEC 61000-4-5 (Surge) level 4, IEC 61000-4-6 (CS) level 3Anti-vibration performance: IEC 60068-2-6

Shock resistance: IEC 60068-2-27

Free fall: IEC 60068-2-32
