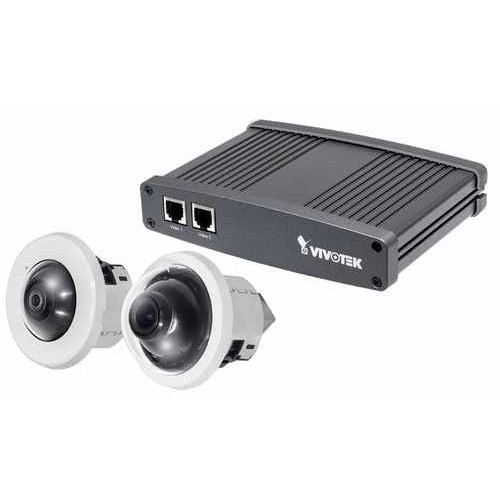

Camera nhỏ gọn dể giấu kín System Vivotek VC8201-M13 (5m)

- Camera nhỏ gọn dể giấu kín system VC8201-M13 includes 1-video core and 2-camera with CU8131 + CU8171.

- 2 Camera Options: 1MP WDR or 5MP Fisheye Camera.

- Recessed Mount Camera Units.

- Built-in Microphone on Camera Units.

- Maximum Cable Connection: 5m.

- Real-time Compression: H.264 and MJPEG.

- 3D Noise Reduction.

- Power input: 12V DC/ PoE802.3af.

Specifications

Model VC8201-M13

Camera Features

Image Sensor 1/3 inch Progressive CMOS (CU8131)

1/2.5 inch Progressive CMOS (CU8171)

Maximum Resolution 30 fps @ 1280 x 800 (CU8131)

15 fps @ 1696 x 1696 (CU8171)

Focal Length f=3.6mm (CU8131)

f=1.27mm (CU8171)

Aperture F1.8 (CU8131)

F2.0 (CU8171)

Field of View CU8131: 86° (H); 51° (V); 103° (D)

CU8171: 180° (H); 180° (V); 180° (D)

Shutter Time 1/5s ~1/32,000s

WDR Technology WDR Pro (CU8131)

WDR enhanced (CU8171)

Minimum Illumination CU8131: 1.05Lux@F1.8, 50IRE (Color)

CU8171: 0.66Lux@ F2.0, 50 IRE (Color)

Tilt Range 70° (CU8131)

Pan/ Tilt/ Zoom CU8131: 48x digital zoom (4x on IE plug-in, 12x built-in)

CU8171: 12x digital zoom

On-board Storage MicroSD/SDHC/SDXC card slot

Video

Compression H.264 & MJPEG

Video Source Up to 2 VIVOTEK camera units

Maximum Streams 3 simultaneous streams per camera unit

Video Streaming Adjustable resolution, quality and bitrate; Configurable video cropping for bandwidth saving

Image Settings Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3D Noise Reduction
