PoE Function
Number of PoE Port - 1
Max. PoE Output Power/Per Port - 90W
IEEE PoE Standard 802.3af/a/bt
Over Current Protection Supported
Circuit Shorting Protection Supported
Total PoE Power Budget 90W
Power Pin Assignment 3,6 / 4,5 (+), Pin 1,2 / 7,8 (-)
PoE PD Auto Detection Supported
General
Input Voltage Range 100~240VAC / 50~60Hz
Output Voltage/Current 56VDC/1.61A
Electrostatic Discharge (ESD) Per IEC-61000-4-2
Contact discharge - ±6KV
Air Discharge - ±8KV Criterion B
MTBF 200k hours of continuous operation at 25°C
Dimensions - 196.3 (L) x 80 (W) x 39.8 (H) mm
Weight - 0.45kg
Operating Temperature -10°C ~ 40°C (14°F ~ 104°F)
Storage Temperature -25°C ~ 50°C (-13°F ~ 122°F)
Humidity - Operating: 5~90%
Storage - 5~90% (non-condensing)
Safety Certifications - CE, CB, FCC, VCCI
Warranty - 24 Months

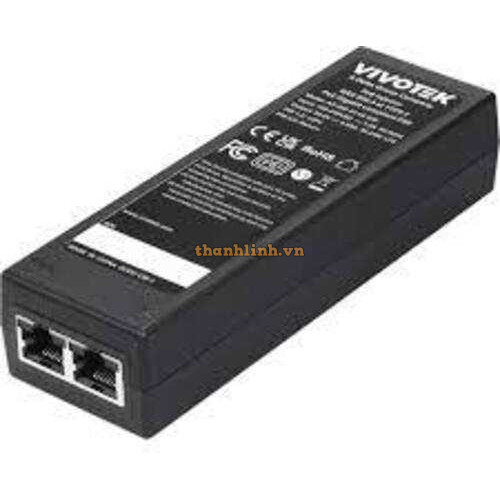

Bộ nguồn 1xGE 90W bt PoE Injector Vivotek AP-GIC-011B-090
- Thương hiệu: VIVOTEK
- Mã số sản phẩm: AP-GIC-011B-090
- Tình trạng kho: Đặt hàng qua Zalo hoặc Email
-
Xin liên hệ
