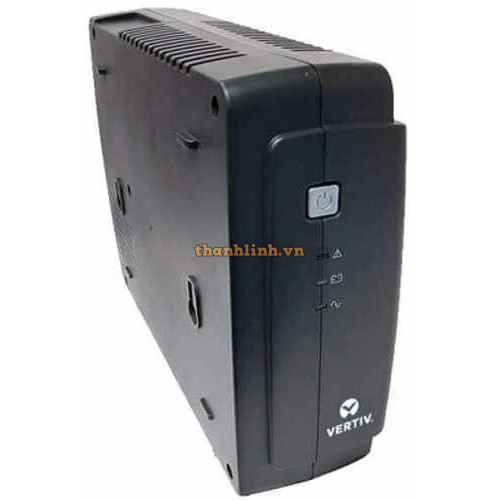

Nguồn lưu điện UPS VERTIV PSA1000-SOHO (01202771)

- Capacity: 1000VA/600W.

- Input voltage range: 162 – 290VAC, single-phase.

- Input frequency range: 50Hz/60Hz automatic identification.

- Transfer time: Typical 2–6 ms, 10ms max.

Features

- Universal Sockets.

- USB Port Mobile Charger.

- Built-in Boost and Buck AVR.

- Space for large power plugs.

- Fuse Protection.

- Microprocessor control guarantees high system reliability.

- Provides AC overload protection.

- Auto restart when AC source recovers.

- Compact size, lightweight.

- Fast charging.

- OFF mode charging.

- Cold start function.

- Overload protection and alarm.

- Surge protector against transient voltages.

Key Advantages

- AVR features gives higher protection level by correcting high and low voltage without using valuable battery power.

- Universal sockets ensures hassle-free connection of virtually any equipment input plug types.

- Standard USB mobile charger allows for fast and safe charging or powering any electronic peripherals like routers, modems, wireless storage devices and etc...

Specifications

Model Number PSA1000-SOHO

Capacity (VA/W) 1000VA/600W

Input

Voltage range 162 – 290VAC, single-phase

Frequency range 50Hz/60Hz automatic identification

Output

Voltage tolerance (Batt. Mode) Simulated sine wave at nominal voltage ±10%

Frequency range (Batt. Mode) 50Hz/60Hz automatic identification

Transfer time Typical 2–6 ms, 10ms max.

Battery

Battery type & Number 12V/9AH × 1

Typical recharge time 6-8 hours recover to 90% capacity (About 1A charging current at Normal Mode)

Configuration Battery: 1×2.7kg, 9Ah

Sockets: 6×Universal

USB Charger: *0

Runtime

Load% 25%: 18 min

50%: 4m

System Features

Indicators AC Mode: Solid green led lighting; Battery Mode: Solid yellow led flash; Fault Solid: Red led lighting

Protection Discharge, Overload and overcharge protection

Alarm 1.) Battery Mode: Sounding every 10 seconds; 2.) Low battery: Sounding every 1 second;

3.) Overload: Sounding every 0.5 second; 4.) Fault: Continuously sounding

Operating temperature 0 ~ 40°C

Humidity range 0 ~ 95% (non-condensing)

Noise level Less than 40dB (1 meter from surface)

Fuse Protection Yes

USB Charging slot No

Physical

Dimension D × W × H (mm) 87 × 346 × 208

Weight (kg) 6.0 kg

- Xuất xứ: Trung Quốc.

- Bảo hành: 2 năm.
