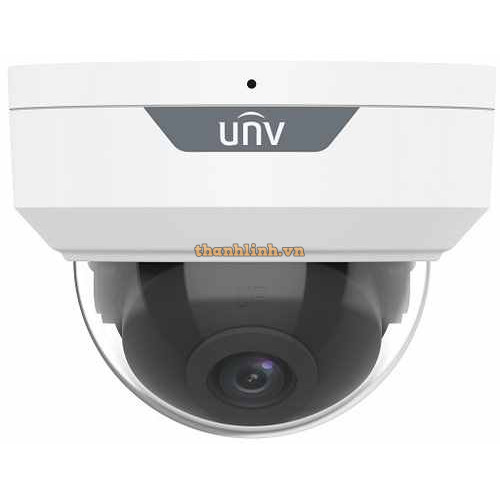

Camera IP Dome hồng ngoại 4.0 Megapixel UNV IPC324LB-ADF28K-H/AC

- Cảm biến hình ảnh: 1/3” CMOS.

- Các độ phân giải hỗ trợ:

o 4MP (2560 × 1440) ở 25/20 fps.

o 3MP (2304 × 1296) ở 30/25 fps.

o 2MP (1920 × 1080) ở 30/25 fps.

o 720P (1280 × 720) ở 30/25 fps.

- Hỗ trợ nhiều chuẩn nén video: Ultra 265, H.265, H.264, MJPEG.

- Hồng ngoại thông minh (Smart IR) với tầm xa lên đến 30m (98ft), đảm bảo camera quan sát rõ nét trong bóng tối.

- Hỗ trợ khe cắm thẻ nhớ Micro SD dung lượng tối đa 512GB.

- Hỗ trợ cấp nguồn qua mạng PoE (Power over Ethernet).

- Thiết kế xoay 3 chiều (3-Axis), dễ dàng điều chỉnh trong lắp đặt.

- Tiêu chuẩn chống bụi nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).

- Tiêu chuẩn chống va đập: IK10.

Thông số kỹ thuật

Camera

Max Resolution 4MP

Sensor 1/3” CMOS

Min. Illumination Colour: 0.01 lux ( F2.0, AGC ON)

0 lux with IR

Day/Night IR-cut filter with auto switch (ICR)

Shutter Auto/Manual, 1 ~ 1/100000s

Adjustment Angle Pan: 8° ~ 360°, Tilt: 0° ~ 68°, Rotate: 10° ~ 360°

S/N >52dB

WDR 120dB

Lens

Focal Length 2.8 mm

Iris Type Fixed

Iris F2.0

Field of View 101.5° (H), 55.6° (V), 111.6° (D)

Illuminator

Supplemental Light IR

Illumination Distance (IR) 30 m (98.4 ft)

Wavelength 850 nm

IR On/Off Control Auto/Manual

Video

Video Compression Ultra 265, H.265, H.264, MJPEG

H.264 Code Profile Baseline profile, Main profile, High profile

Frame Rate Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps

Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps

Video Bit Rate 128 Kbps ~ 6144 Kbps

U-code Support

OSD Up to 4 OSDs

Privacy Mask Up to 4 areas

ROI Support

Video Stream Dual Streams


White Balance Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2

Digital Noise Reduction 2D/3D DNR

Smart IR Support

Flip Normal, Flip Vertical, Flip Horizontal, 180°, 90°Clockwise, 90°Anti-clockwise

HLC Support

BLC Support

Defog Digital Defog

Events

Basic Detection Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Cross Line (based on Human Body Detection), Intrusion (based on Human Body Detection)

General Function Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

Audio Compression G.711U, G.711A

Audio Bitrate 64 Kbps

Suppression Support

Sampling Rate 8 KHz

Storage

Edge Storage Micro SD, up to 512 GB

Network Storage ANR, NAS (NFS)

Network

Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP

Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK

User/Host Up to 32 users, 2 user levels: administrator and common user

Security Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF

Client UNV-Link, UNV-Link Pro, EZStation

Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

Built-in Mic Support

Network 1 x RJ45 10M/100M Base-TX Ethernet

General

Power DC 12V±25%, PoE (IEEE 802.3af)

Power Consumption Max 4.0W

Power Interface Ø 5.5 mm coaxial power plug

Dimensions Ø109 x 83mm (Ø4.3” x 3.3”) (Ø x H)

Weight 0.36kg (0.79lb)

Material Metal + Plastic

Working Environment -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)

Storage Environment -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing)

Surge Protection 4KV

Web Client Language English, Russian, Spanish, Vietnamese

Protection IP67 (IEC 60529), IK10 (IEC 62262)

- Bảo hành: 24 tháng.
