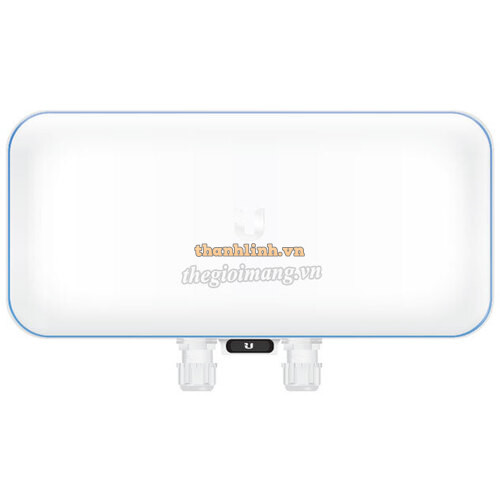

Thông số kỹ thuật wifi Unifi UWB-XG-BK

UWB-XG-BK

Dimensions 471.1 x 257.5 x 94.3 mm (18.55 x 10.14 x 3.713")

Weight (Without Mount) 3.2 kg (7.055 lb)

Networking Interface 1 Port 10/100/1000 RJ45 Ethernet Port

1 Port 1/10 Gbps ICM Ethernet Port

Buttons Reset

Led RGB, Software-Controllable

Power Method 802.3bt PoE

Power Supply 50VDC, 1.2A Gigabit PoE

Power Save Supported

Beamforming Supported

Maximum Power Consumption 31W

Supported Voltage Range 44 to 57VDC

Max TX Power 25 dBm

MIMO (3) 4 x 4

Operating Frequency 5 GHz

5 GHz Tri-Band yes

5 GHz Radio Rate (3) 1733 Mbps

Environment Indoor

Antennas Integrated Dual-Mode Antenna Array

Antenna Gain Small Cell: 15 dBi

Large Cell: 10 dBi

Antenna Beamwidth Small Cell: 50°

Large Cell: 90°

Wi-Fi Standards 802.11 a/n/ac/ac-wave2

Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF

Mounting VESA-Compatible Mount, Pole/Wall (Brackets Included)

Operating Temperature -10 to 70° C (14 to 158° F)

Operating Humidity 5 to 95% Noncondensing

Dust and Water Resistance IP67

Certifications CE, FCC, IC

Advanced Traffic Management

VLAN 802.1Q

Advanced QoS Per-User Rate Limiting

Guest Traffic Isolation Supported

WMM Voice, Video, Best Effort, and Background

Concurrent Clients 1500

Supported Data Rates (Mbps)

Standard Data Rates

802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)

802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
