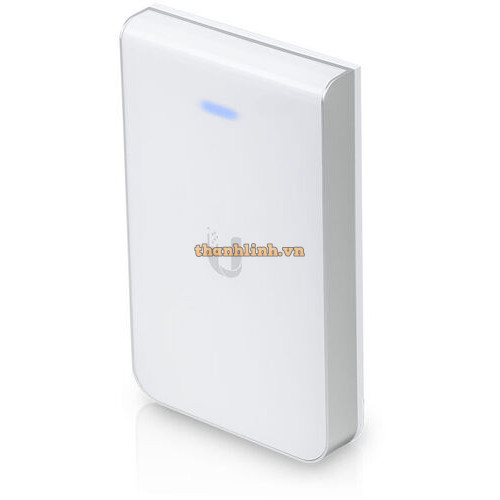

Thông số kỹ thuật wifi Unifi UAP-IW-HD

UAP-IW-HD

Environment Indoor

2.4 GHz Radio Rate 300 Mbps

2.4 GHz MIMO 2x2

5 GHz Radio Rate 1733 Mbps

5 GHz MIMO 4x4

Dimensions 139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01")

Weight 210 g

Networking Interface 10/100/1000 Ethernet Ports

Secondary Ethernet Port (4 Additional Ports)

Buttons Reset

Power Method 802.3af PoE, 802.3at PoE+

Supported Voltage Range 44 to 57VDC

Power Supply UniFi Switch (PoE)

Power Save Supported

PoE Out 48V Passthrough (Pins +1, 2; -3, 6)

Beamforming Supported

Maximum Power Consumption

11W

with PoE Passthrough: 23W

TX Power 2.4 GHz: 23 dBm

5 GHz: 26 dBm

Antennas

(2) Single-Port, Single-Polarity Dual-Band Antennas, 2.4 GHz: 1.8 dBi Each, 5 GHz: 3.4 dBi Each

(2) Single-Port, Dual-Polarity, Single-Band Antennas, 5 GHz: 6 dBi Each

Wi-Fi Standards 802.11 a/b/g/n/ac/ac-wave2

Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) 802.11w/PMF

BSSID 8 per Radio

Mounting 1-Gang Electrical Wall Box (Not Included)

Operating Temperature -10 to 60° C (14 to 140° F)

Operating Humidity 5 to 95% Noncondensing

Certifications CE, FCC, IC

Advanced Traffic Management

VLAN 802.1Q

Advanced QoS Per-User Rate Limiting

Guest Traffic Isolation Supported

WMM Voice, Video, Best Effort, and Background

Concurrent Clients 200+

Supported Data Rates (Mbps)

Standard Data Rates

802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)

802.11b 1, 2, 5.5, 11 Mbps

802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
