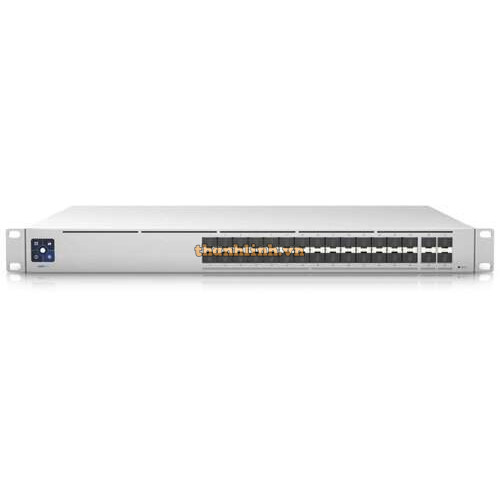

Product Features

• (28) 10 Gbps SFP+ ports

• (4) 25 Gbps SFP28 ports

• 760 Gbps switching capacity

• (1) 1.3” touchscreen with AR switch management

• (1) Backup 12V DC input connector, SmartPower RPS

Product Specifications

• Total Non-Blocking Throughput: 380 Gbps

• Switching Capacity: 760 Gbps

• Forwarding Rate: 565.44 Mpps

• Max. Power Consumption: 100W

• Power Method

(1) Universal AC Input: 100-240VAC, 2A Max, 50/60 Hz

(1) USP-RPS DC input, 11.5VDC, 8.7A

• Power Supply: AC/DC, Internal, 100W

• Network Interface:

• (28) 1/10 Gbps SFP+ Ethernet

• (4) 1/10/25 Gbps SFP28 Ethernet

• LCM Display:

• (1) 1.3" Touchscreen

• Bootup Animation: Bootup in Progress

• Firmware Upgrade Icon: Firmware Upgrading

• Steady White: Factory Defaults, Awaiting Adoption

• Steady Blue: Device is Adopted

• LEDs: SFP28/SFP+: White, Link and Activity

• Management Interface: Ethernet In-Band

• Modes: SMB Layer 3 10/25 G Fiber Switch

• ESD/EMP Protection: Air: ± 16kV, Contact: ± 12kV

• Operating Temperature: -5 to 40° C (23 to 104° F)

• Operating Humidity: 10 - 90% Noncondensing

• Certifications: CE, FCC, IC
