Đặc tính kỹ thuật

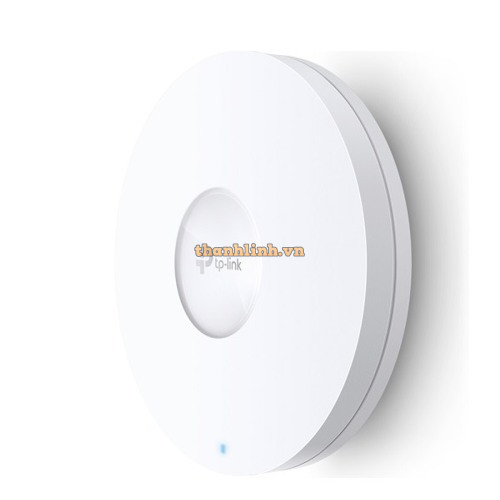

Model EAP620 HD

HARDWARE FEATURES

Interface 1× Gigabit Ethernet ( RJ-45 ) Port ( supports IEEE802.3at PoE )

Button Reset

Power Supply 802.3at PoE

12 V DC

Power Consumption EU : 12 W

US : 13.5 W

Dimensions ( W x D x H ) 243 × 243 × 64 mm

Antenna Type Internal Omni

- 2.4 GHz : 2× 5 dBi

- 5 GHz : 2× 6 dBi

Mounting Ceiling /Wall Mounting ( Kits included )

WIRELESS FEATURES

Wireless Standards IEEE 802.11ax/ac/n/g/b/a

Frequency 2.4 GHz and 5 GHz

Signal Rate 5 GHz : Up to 1201 Mbps

2.4 GHz : Up to 574 Mbps

Wireless Functions 1024-QAM

4× Longer OFDM Symbol

OFDMA

Multiple SSIDs ( Up to 16 SSIDs , 8 for each band )

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control ( Adjust Transmit Power on dBm )

QoS ( WMM )

MU-MIMO

Seamless Roaming

Band Steering

Load Balance

Airtime Fairness

Beamforming

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client

Wireless Security Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

WEP , WPA-Personal/Enterprise , WPA2-Personal/Enterprise , WPA3-Personal/Enterprise

Transmission Power - CE :

20 dBm ( 2.4 GHz , EIRP )

23 dBm ( 5 GHz , EIRP )

- FCC :

25 dBm ( 2.4 GHz )

25 dBm ( 5 GHz )

MANAGEMENT

Omada App Yes

Centralized Management Omada Cloud-Based Controller

Omada Hardware Controller ( OC300 )

Omada Hardware Controller ( OC200 )

Omada Software Controller

Cloud Access Yes ( Through OC300 , OC200 , Omada Cloud-Based Controller , or Omada Software Controller )

Email Alerts Yes

LED ON/OFF Control Yes

Management MAC Access Control Yes

SNMP v1 , v2c , v3

System Logging Local/Remote Syslog Local/Remote Syslog

SSH Yes

Web-based Management HTTP/HTTPS

L3 Management Yes

Multi-site Management Yes

Management VLAN Yes

OTHERS

Certification CE , FCC , RoHS

Package Contents EAP620 HD

Power Adapter

Ceiling/Wall Mounting Kits

Installation Guide

System Requirements Microsoft Windows XP , Vista , Windows 7 , Windows 8 , Windows10 , Linux

Environment Operating Temperature : 0–40 ℃ ( 32–104 ℉ )

Storage Temperature : -40–70 ℃ ( -40–158 ℉ )

Operating Humidity : 10–90% RH non-condensing

Storage Humidity : 5–90% RH non-condensing
