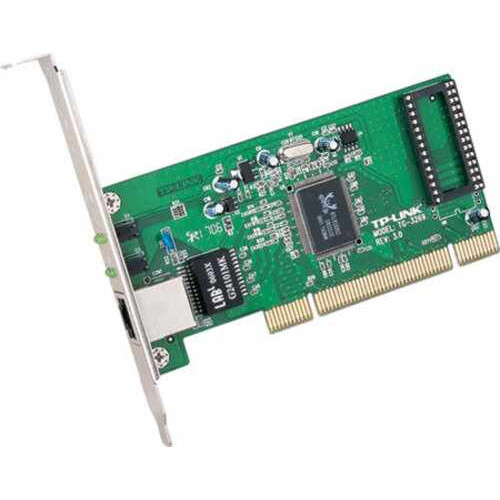

Gigabit PCI Network Adapter TP-LINK TG-3269

- 10/100/1000M PCI Adapter.

- Complies with IEEE 802.3/802.3u/802.3ab Ethernet Standard.

TG-3269 is a 10/100/1000Mbps, 32-bit 33/66MHz PCI-bus Gigabit Ethernet adapter. With single UTP/STP and the Auto-Negotiation (Nway) function support, the Card can auto-negotiate 10Mbps, 100Mbps or 1000Mbps speed, and half or full duplex mode with its link partner (a hub, for example). Supports ACPI, compliant with PCI2.2. Full range of drivers are provided for major Operating Systems

Đặc tính kỹ thuật

Standards and Protocols

IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p

CSMA/CD, TCP/IP, PCI Revision 2.1/2.2

Interface

32-bit PCI

Transmission Rate

10/100Mbps for Half-Duplex mode

20/200/2000Mbps for Full-Duplex mode

Flow Control

IEEE 802.3x Flow Control (Full-Duplex)

Jumbo Frame

7680Bytes

Port

10/100/1000Mbps RJ45

Slot

1 BOOTROM slot

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000Base-T: UTP category 5, 5e cable (maximum 100m)

LED Indicator

1000M Link/Act, 100M Link/Act, 10 Link/Act, Duplex

Safety & Emission

FCC, CE

Environment

Operating Temperature: 00C~400C (320F ~1040F)

Storage Temperature: -400C ~700C (-400F ~1580F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Operating System

Windows98/98se/2000/ME/NT/XP/2003/VISTA/Novell Netware/LINUX

- Hàng chính hãng TP-LINK.

- Bảo hành: 12 tháng.
