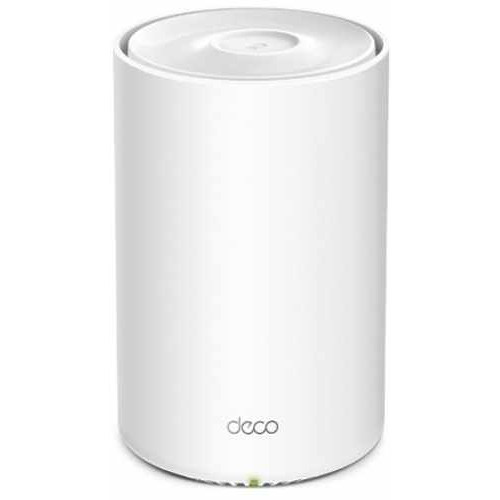

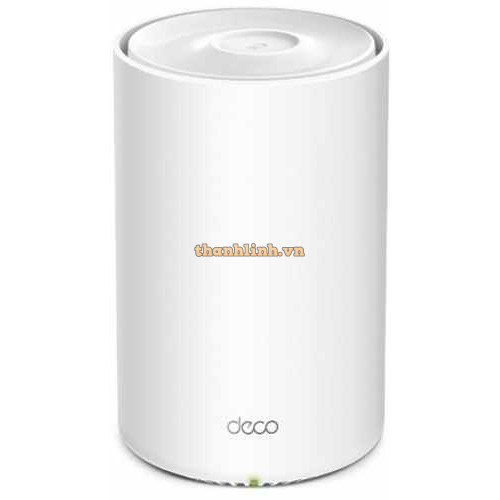

4G+ AX1800 Whole Home Mesh WiFi 6 System TP-LINK Deco X20-4G

- Internet Everywhere with 4G+ Speed - Provides WiFi 6 Mesh coverage through 4G+ CAT6 access.

- Superior WiFi 6 speeds up to 1.8 Gbps - 1201 Mbps (5 GHz) and 574 Mbps (2.4 GHz) dual band WiFi with WiFi 6 technology.

- Fully Gigabit Ethernet - 3x Gigabit WAN/LAN Ethernet ports provide flexible internet access at warp speed.

- TP-Link HomeShield - Real-time IoT and network protection, robust Parental Controls, and comprehensive reports.

- 3G/4G Failover - Flexible access from Ethernet to 3G/4G to prevent data loss.

Specifications

Hardware

- CPU: 1.5 GHz Quad-Core CPU

- Ethernet Port: 3 Gigabit ports (WAN/LAN auto-sensing)

- Button: 1 RESET button on the underside

- Antenna: 2 LTE antennas, 2 Wi-Fi antennas

- Power Consumption (without power adapter): 14.7W max

- Dimensions (W × D × H): 4.13 × 4.13 × 6.57 in (105 × 105 × 167mm)

- Power Adapter Input: 100-240V~50-60Hz 0.6A

- Power Adapter Output: 12V 1.5A

Wireless Others

- 4G: FDD-LTE:B1/B3/B5/B7/B8/B20/B28(2100/1800/850/2600/900/800/700 MHz)

- TDD-LTE: B38/B40/B41(2600/2300/2500 MHz)

- 3G: DC-HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900 MHz)

- Wireless Standards: IEEE 802.11a/n/ac/ax 5GHz, IEEE 802.11b/g/n/ax 2.4GHz

- Mesh Protocol: 802.11k/v/r.

- Frequency: 2.4GHz and 5GHz

- Signal Rate: 574 Mbps on 2.4GHz, 1201 Mbps on 5GHz

- Transmit Power: CE: ≤20 dBm (2.4GHz), ≤23 dBm (5GHz)

- Wireless Security: WPA/WPA2-PSK/WPA3 encryptions

Software

- Working Mode: 3G/4G, Router, Access Point

- WAN Type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP

- Protocols: Supports IPv4 and IPv6

- Guest Network: 2.4GHz Guest Network×1, 5GHz Guest Network×1

- Features: Parental Controls, QoS (Quality of Service), Anti-virus, Address Reservation, Port Forwarding, TP-Link DDNS, IPTV, IPv6, LED Control, Smart Connect, Optional Ethernet backhaul, 1024-QAM, MU-MIMO, OFDMA, BSS Color
