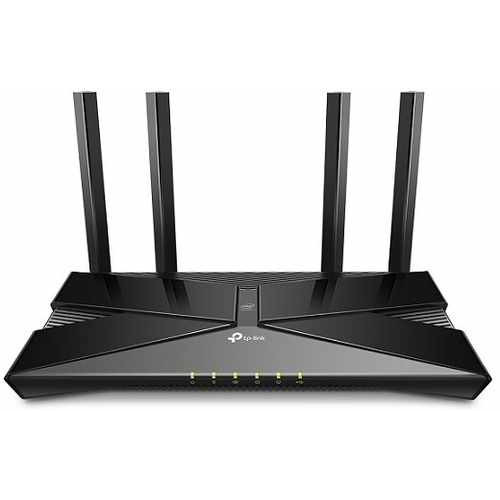

AX1800 Dual-Band Wi-Fi 6 Router TP-LINK Archer AX20

- Dual-Band Wi-Fi 6: Equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.

- Next-Gen 1.8Gbps Speeds: Enjoy smooth streaming, downloading, and gaming all without buffering with Wi-Fi speeds of 1.8Gbps.

- Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA technology while simultaneously reducing lag.

- Quad-Core Processing: The 1.5GHz quad-core CPU ensures communications between your router and all connected devices are smooth.

- Extensive Coverage: Beamforming, independent FEM, and four antennas combine to deliver focused reception to devices far away.

- Increased Battery Life: Target Wake Time technology reduces your devices' power consumption to extend their battery life.

- USB Easy Sharing: A USB 2.0 Port enables easy file sharing within your network or building private Cloud Storage.

- Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App.

- Backward Compatible: Supports all previous 802.11 standards and all Wi-Fi devices.

Specifications

Model Archer AX20

Wireless

Standards Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds 5 GHz: 1201 Mbps (802.11ax)

2.4 GHz: 574 Mbps (802.11ax)

WiFi Range Antennas

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM

Improves transmission power to strengthen signal coverage

WiFi Capacity Dual-Band

Allocate devices to different bands for optimal performance

OFDMA

Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness

Improves network efficiency by limiting excessive occupation

4 Streams

Connect your devices to more bandwidth

Working Modes Router Mode

Access Point Mode

Hardware

Processor 1.5 GHz Quad-Core CPU

Ethernet Ports 1× Gigabit WAN Port

4× Gigabit LAN Ports

USB Support 1× USB 2.0 Port

Supported Partition Formats:

NTFS, exFAT, HFS+, FAT32

Supported Functions:

Apple Time Machine

FTP Server

Media Server

Samba Server
